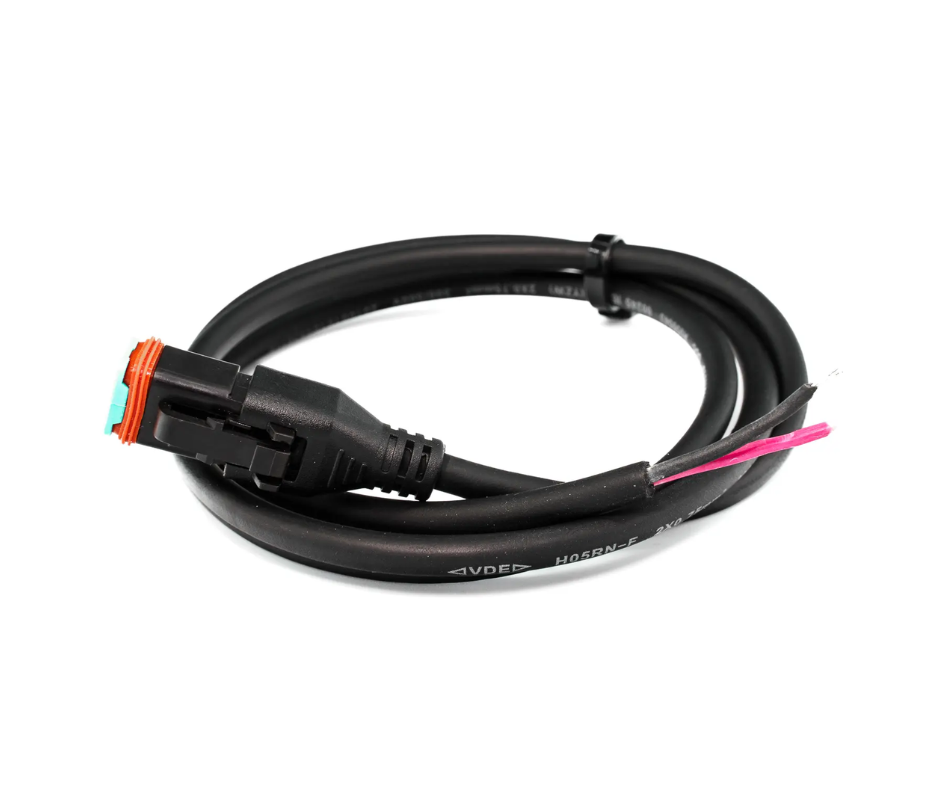

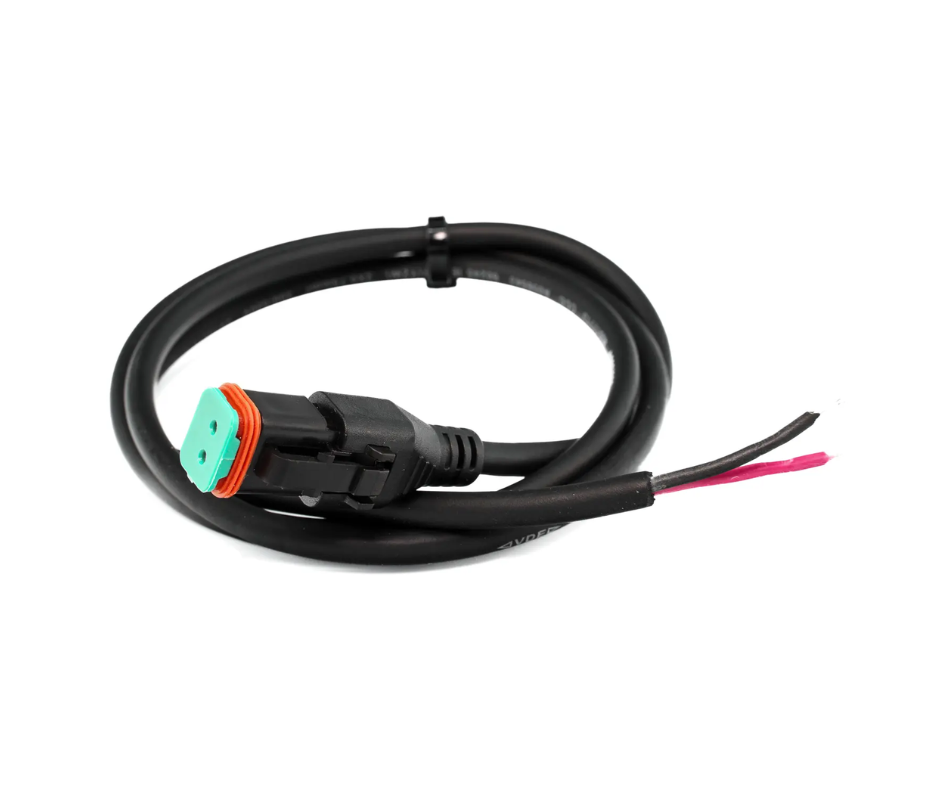

Deutsch DT 2-Pin Female Connector with 1m Cable – ZA2006
Couldn't load pickup availability
The ZA2006 Deutsch DT 2-Pin Female Connector with Cable provides a simple and reliable way to connect LED work lights and other compatible electrical equipment on tractors, agricultural machinery and vehicles.
Supplied pre-wired with a 1-metre cable, the connector is ideal for new lighting installations, replacing damaged connectors or adapting existing wiring to accept lights fitted with a 2-pin Deutsch DT connection.
Key Features
- Product code ZA2006
- Female 2-pin connector
- Genuine Deutsch DT Series type
- Supplied with 1 metre of cable
- Heat-shrink tubing included
- IP68 dust and water protection
- Rated current up to 13A
- Wide operating temperature range
- Robust thermoplastic housing
- Suitable for LED lighting installations
- Ideal for tractors and agricultural machinery
- Useful for repairs, conversions and new installations
Technical Specifications
Product Code: ZA2006
Connector Type: Deutsch DT Series
Connector Gender: Female
Number of Pins: 2
Cable Length: 1 metre
Wire Size: AWG 20–14
Rated Current: 13A
Rated Voltage: 1500V AC
IP Rating: IP68
Operating Temperature: -55°C to +125°C
Housing Material: Thermoplastic
Housing Colour: Black
Cable/Cavity Diameter Range: 1.35–3.68mm
Conductor Cross-Section: 0.5–2mm²
What's Included
1 × ZA2006 Female 2-Pin Deutsch DT Connector with 1m Cable
Heat-shrink tubing for installation
