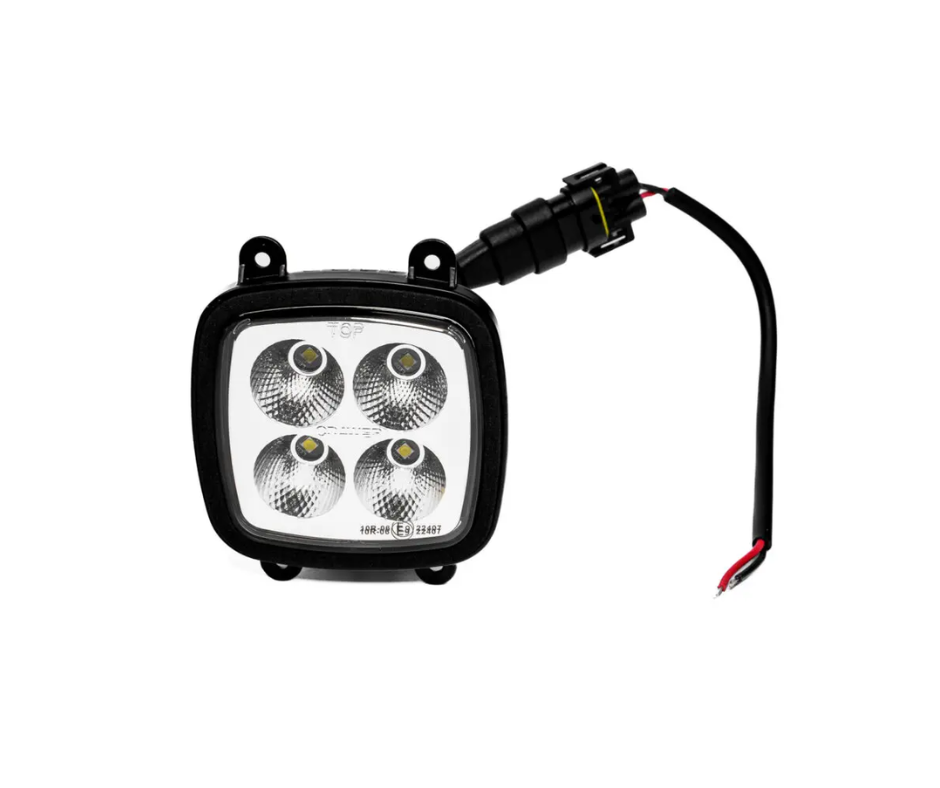

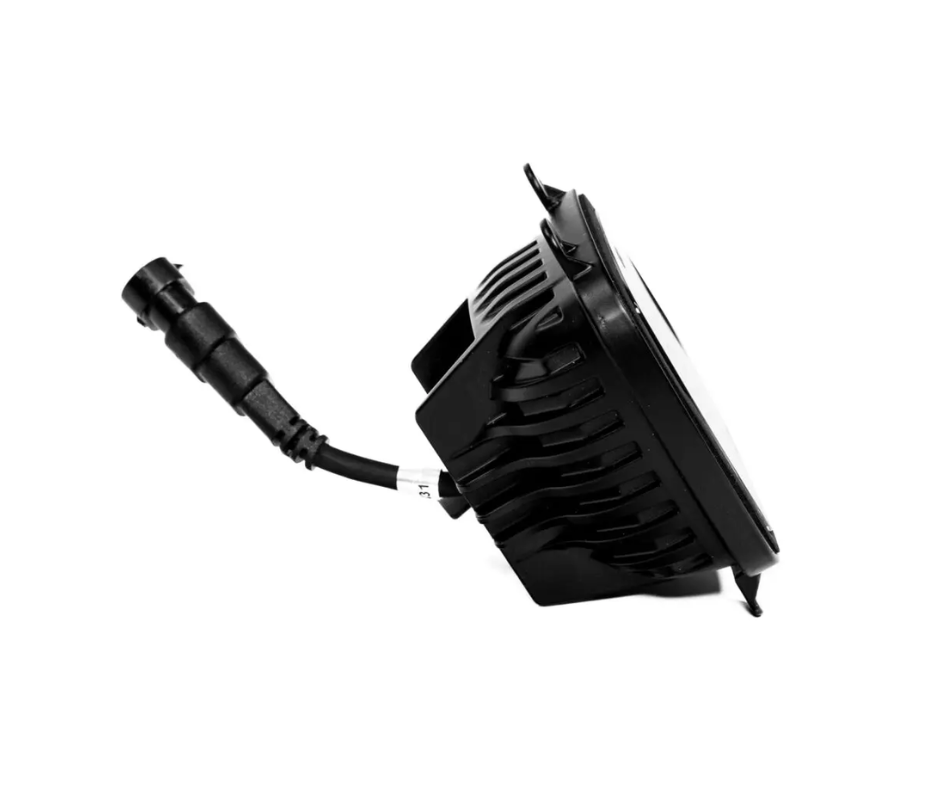

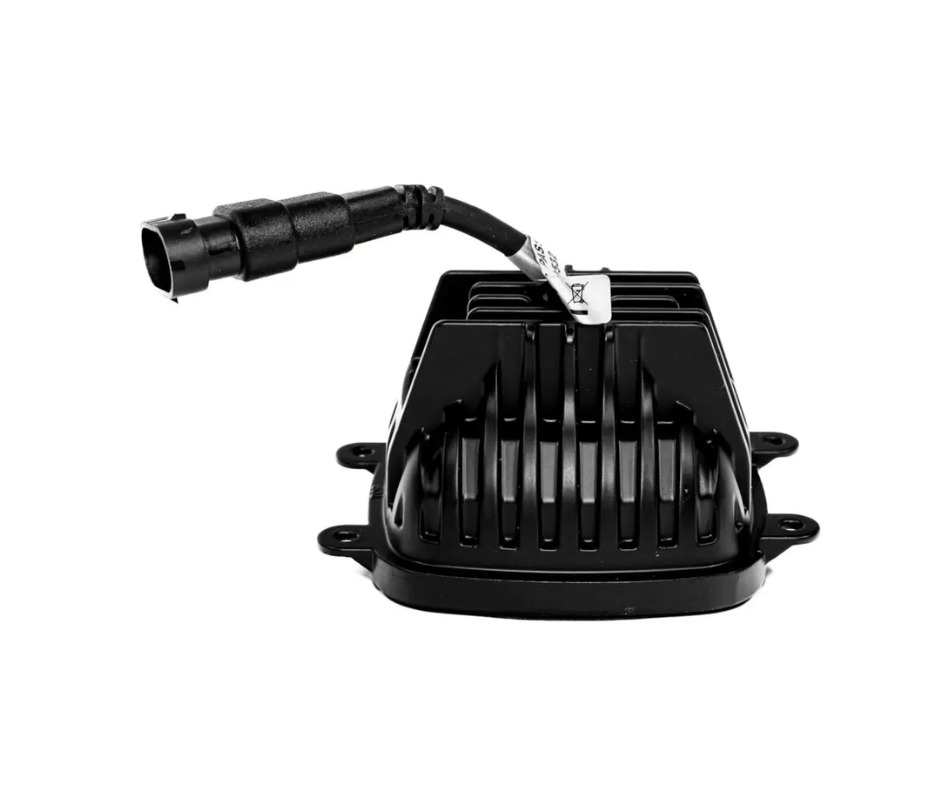

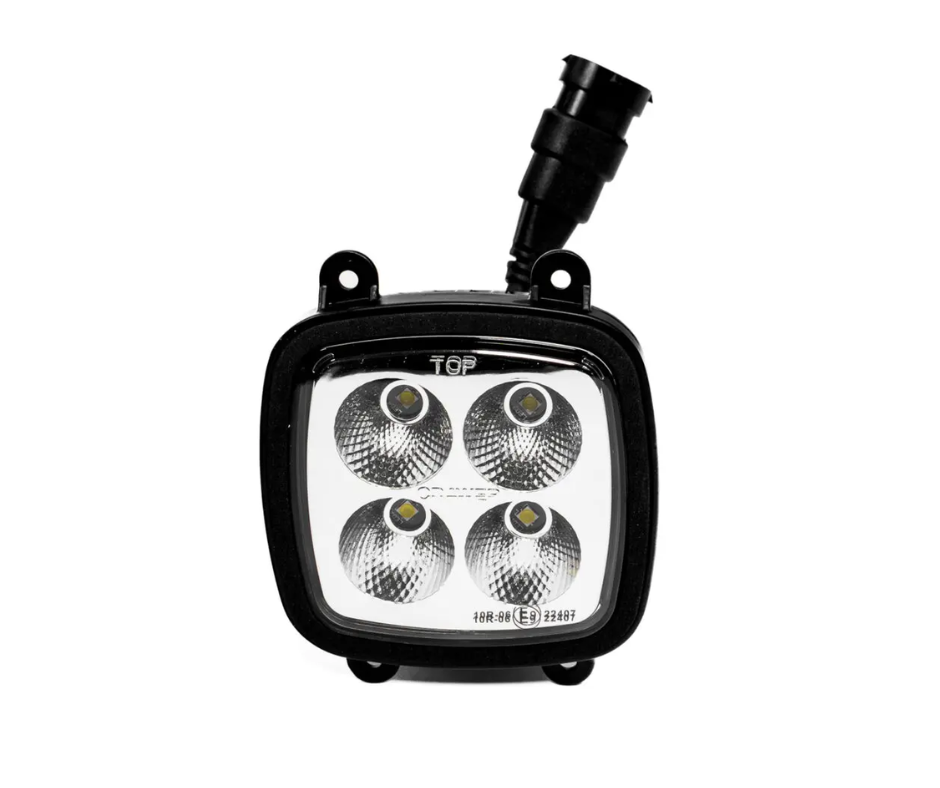

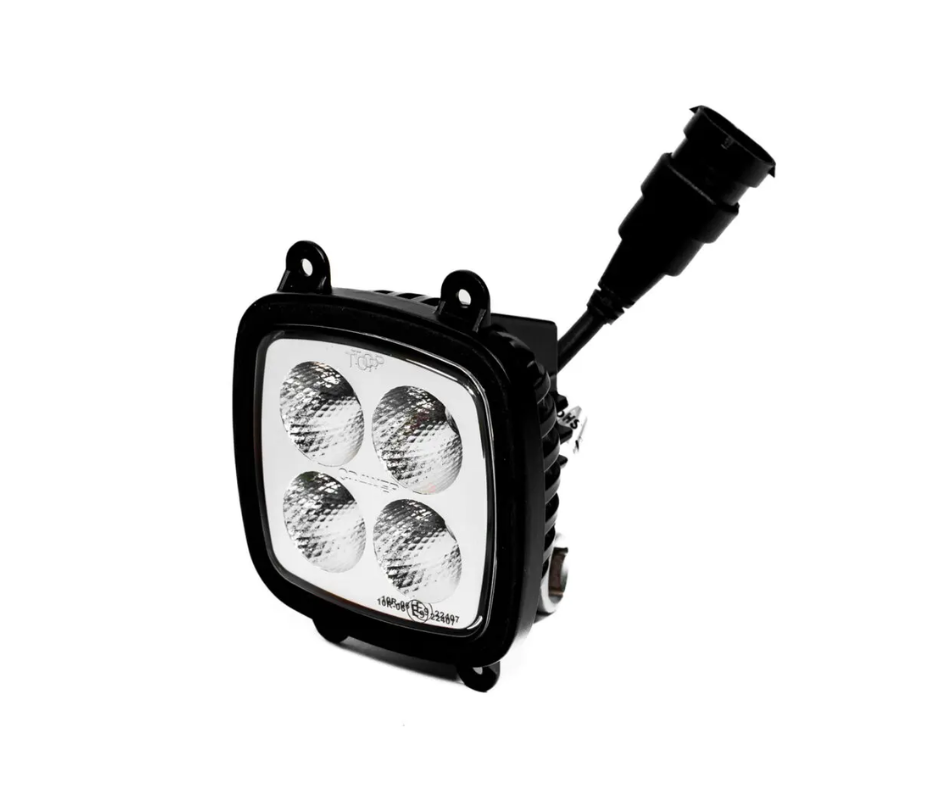

Upgrade the original work lighting on your John Deere tractor with the CRAWER CR-1012-40 recessed LED work light, designed specifically for John Deere 6030 Premium and 7030 Premium Series tractors.
Producing an impressive 4,000 lumens from a compact 30W unit, the CR-1012-40 provides a bright, focused 40° symmetrical beam that is ideal for illuminating the area ahead of the tractor during night-time fieldwork, yard duties and other low-light agricultural applications.
The light has been designed as a direct replacement for the original bonnet-mounted lamp. Installation is straightforward: remove the existing unit, position the CRAWER LED light in the original housing and reconnect using the H11 plug-and-play connection. Its symmetrical beam means the same lamp can be used on either the left- or right-hand side.
Key Features
- CRAWER product code CR-1012-40
- Designed for John Deere 6030 Premium and 7030 Premium tractors
- 30W LED work light
- 4,000 lumen light output
- Symmetrical 40° beam pattern
- 5500K cool white light
- 10–30V DC operating voltage

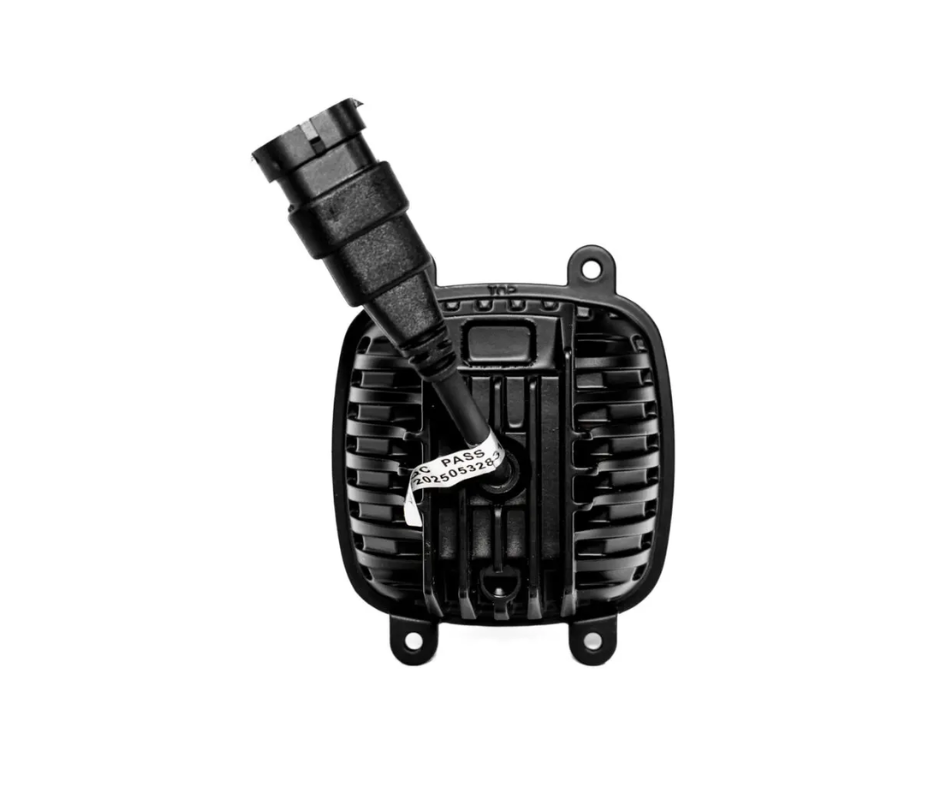

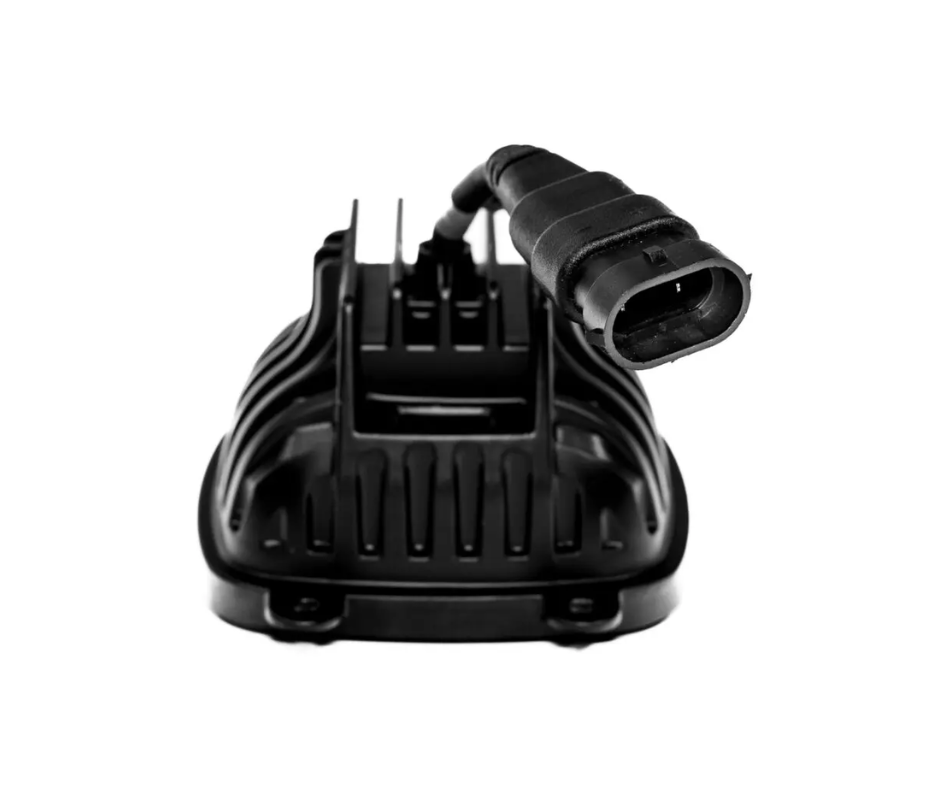

- H11 plug-and-play connection
- Suitable for left- or right-hand installation
- Recessed OEM-style mounting
- Powder-coated aluminium housing
- Impact-resistant polycarbonate lens
- IP67 dust and water protection
- CISPR Class 4 EMC suppression
- ECE R10 approved
Technical Specifications
Power: 30W
Light Output: 4,000 lumens
Beam Pattern: Symmetrical 40° spot beam
Voltage: 10–30V DC
Colour Temperature: 5500K
Connection: H11 connector

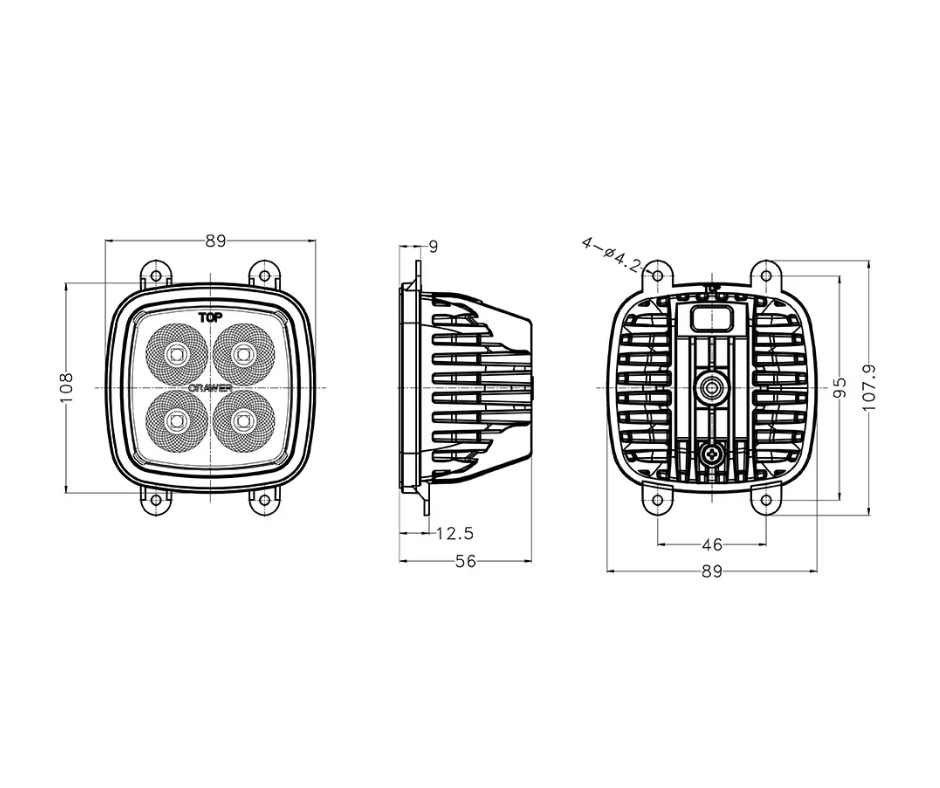

Dimensions: 89 × 108 × 55mm
Mounting: Recessed, 4 mounting points
Mounting Centres: 46 × 95mm
Ingress Protection: IP67
EMC Rating: CISPR Class 4
Approval: ECE R10
Compatible John Deere Models
Suitable for the following John Deere Premium Series tractors:
- John Deere 6230 Premium
- John Deere 6330 Premium
- John Deere 6430 Premium
- John Deere 6530 Premium
- John Deere 6630 Premium
- John Deere 6830 Premium
- John Deere 6930 Premium
- John Deere 7430 Premium
- John Deere 7530 Premium
Important: This light is designed for the 6030 Premium and 7030 Premium Series only. It is not suitable for standard John Deere 6030 models, which use a different recessed light arrangement.
