  3. Purelux Panther Alpha 20 Work light - 10 cm / 20W
By Purelux

Purelux Panther Alpha 20 Work light - 10 cm / 20W

£52.00 GBP Ex Vat
£62.40 Inc Vat
£52.00 GBP
Shipping calculated at checkout.
Beam Type: Wide beam pattern
Brand: Purelux
Availability: Low stock: 10 left
Brand Code: HS19441
£52.00 GBP Ex Vat
£62.40 Inc Vat
£52.00 GBP

The Panther Alpha 20 is a cutting-edge work light series designed for demanding conditions, offering both Wide Beam and Spot Beam variations to suit different applications. With a sleek design, high-performance lighting, and a two-colour parking light, these lights bring a new level of versatility and style to the market. Built to withstand extreme environments, the Panther Alpha 20 delivers powerful illumination while minimising glare and optimising visibility.

Two Beam Options for Maximum Versatility

  • Panther Alpha 20 Wide Beam: Produces a broad, evenly distributed light pattern, making it ideal for illuminating work areas, vehicle surroundings, or general-purpose lighting. This version provides excellent coverage without unnecessary light spill, ensuring visibility where it's needed most.
  • Panther Alpha 20 Spot Beam: Designed for long-range visibility, this version projects a focused beam with a range of up to 264m @ 1 lux. It is R149 road-approved, making it suitable for use as an additional driving light for ATVs, motorcycles, smaller work machines, and any application where a compact, high-powered spot beam is required.

Optimised Performance in Any Condition

Both versions feature a neutral 5000K colour temperature, the perfect balance for working lights and road applications. This colour temperature enhances clarity, improves visibility in fog and rain, and ensures accurate colour representation of the surroundings. The advanced reflector technology in the Panther Alpha 20 Spot directs all available light straight ahead, reducing glare and maximising efficiency.

Durability and Modern Styling

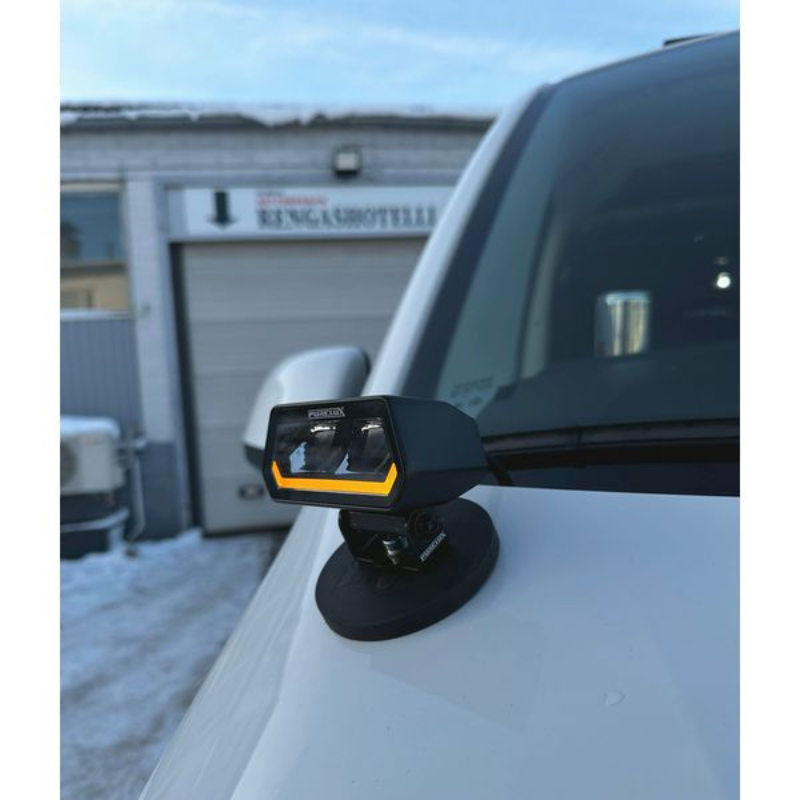

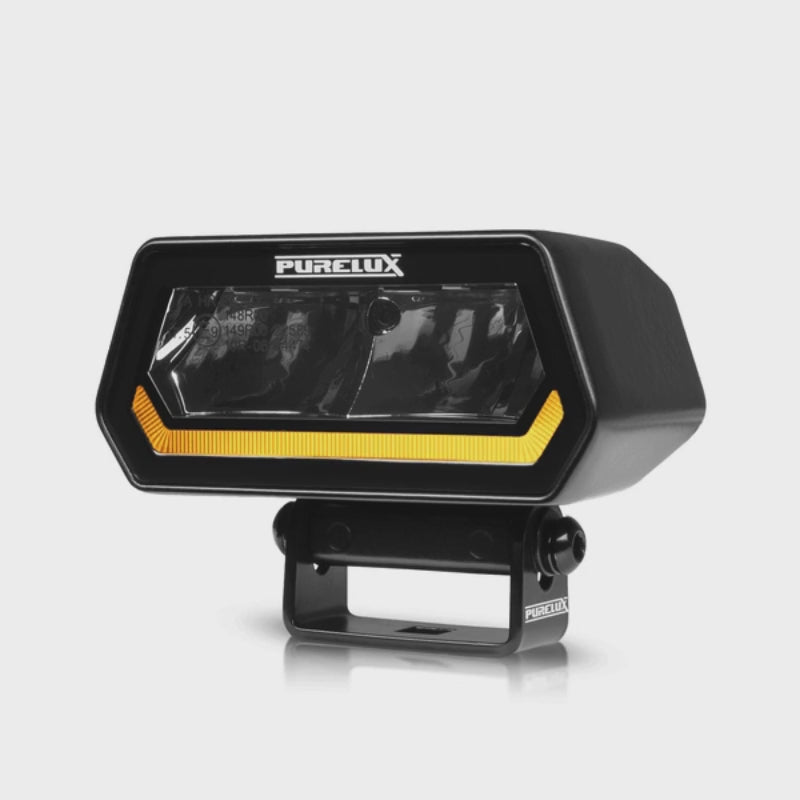

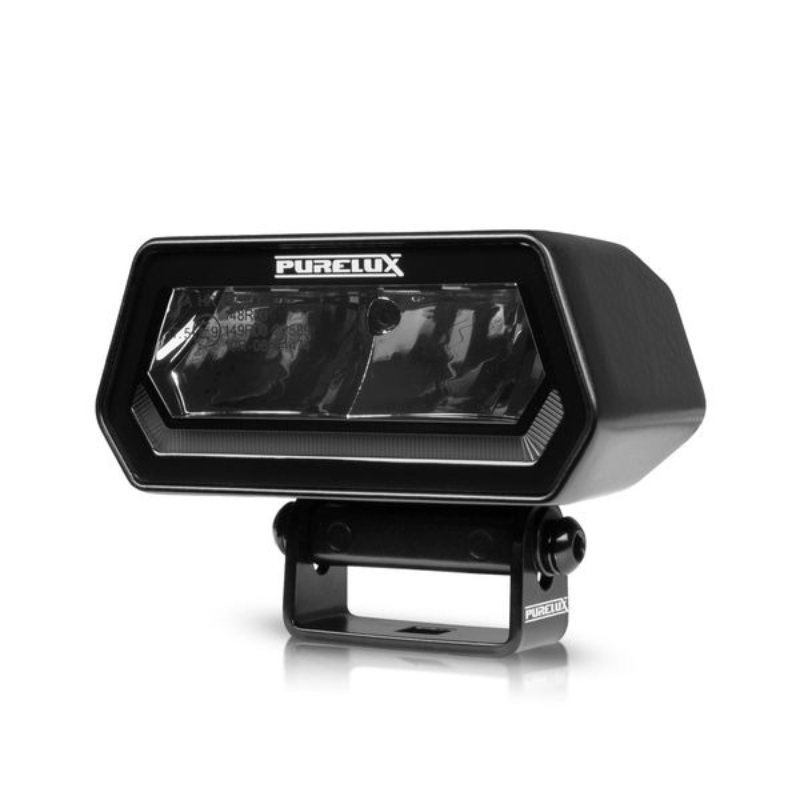

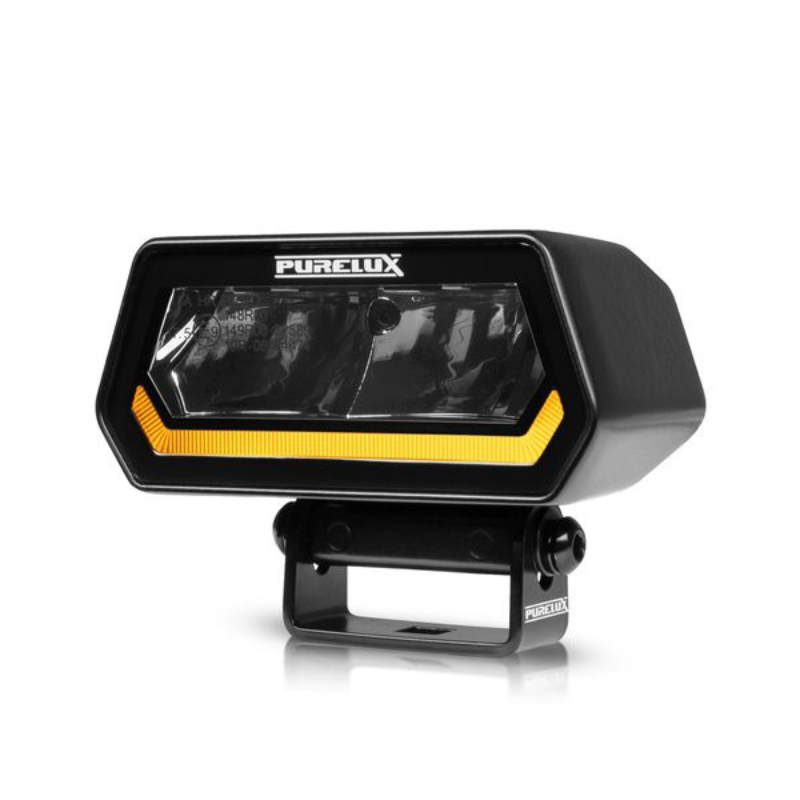

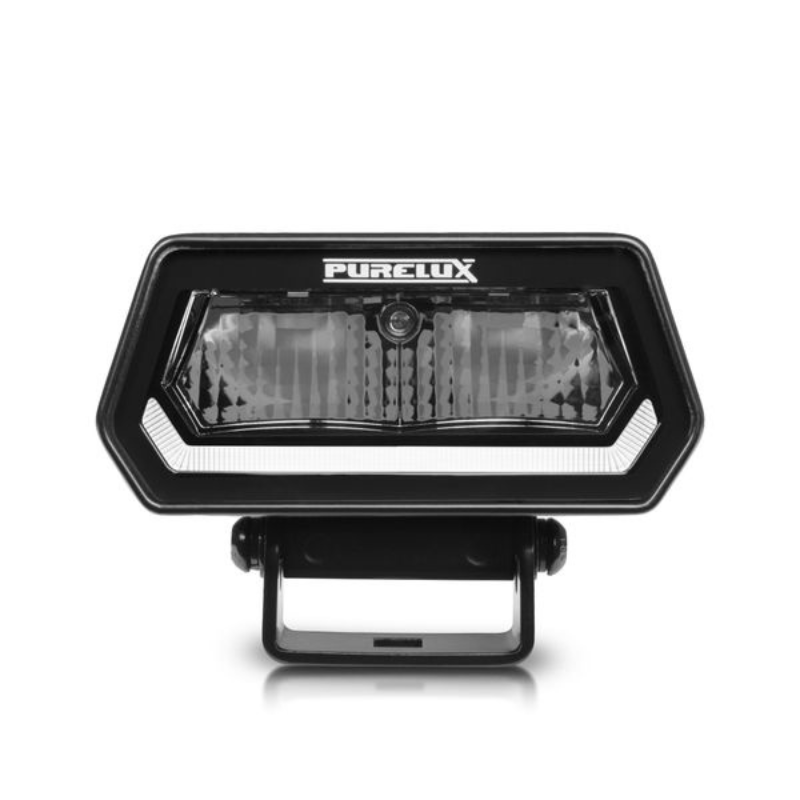

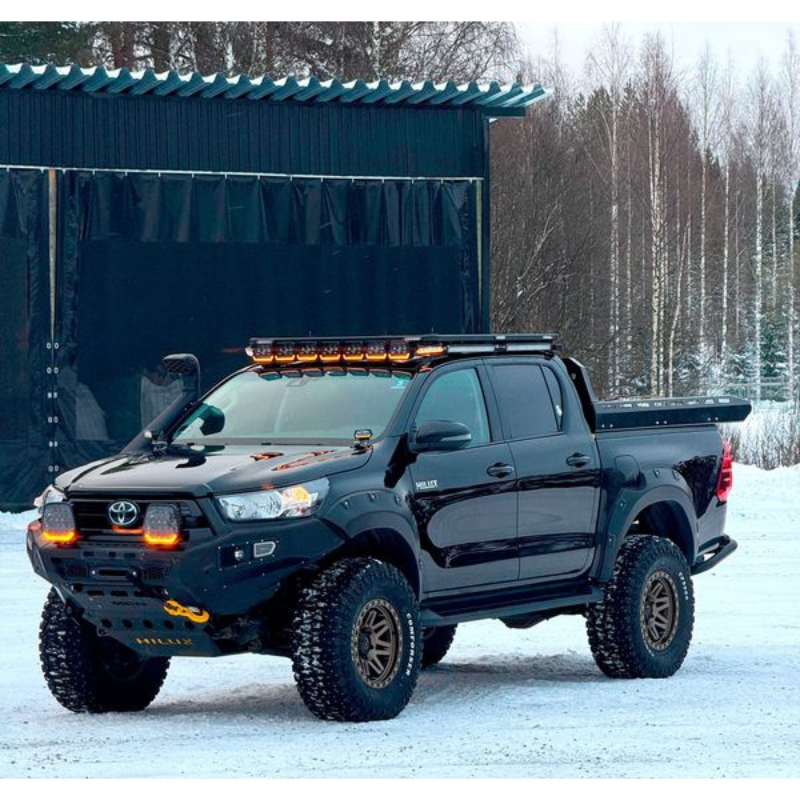

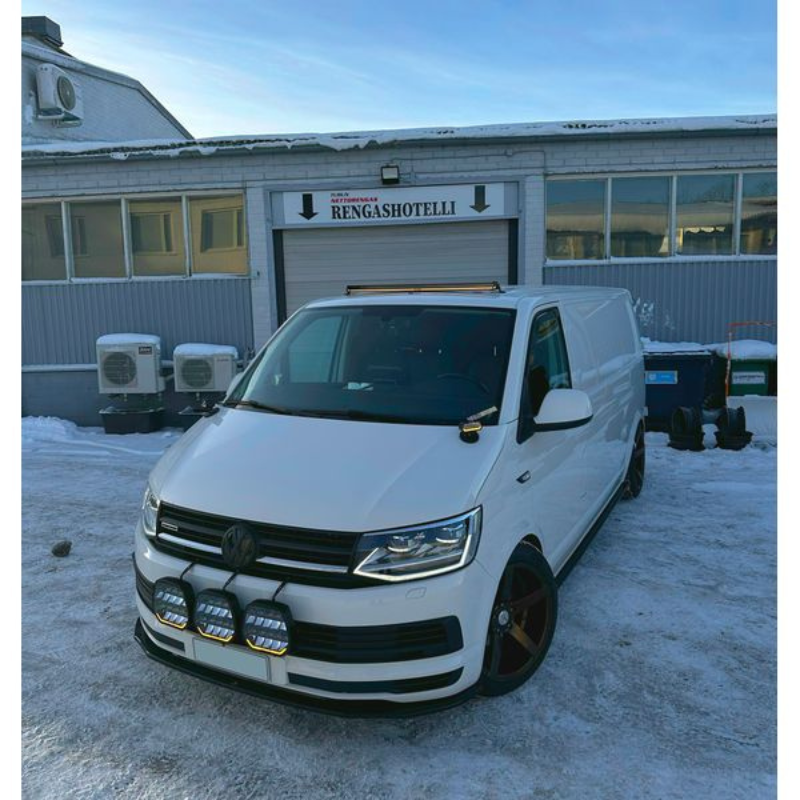

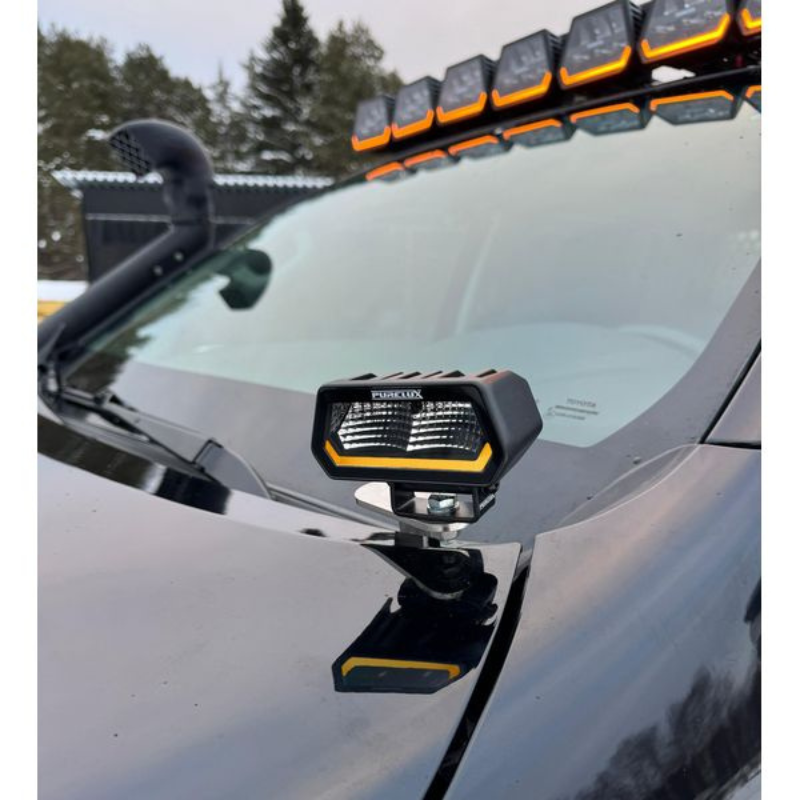

In addition to their powerful lighting capabilities, the Panther Alpha series stands out with a modern and stylish appearance. The dark profile, combined with an integrated orange or white parking light, makes these lights a sleek addition to any vehicle. Engineered for harsh conditions, they feature:

  • IP69K waterproof rating for superior resistance to dust, moisture, and debris.

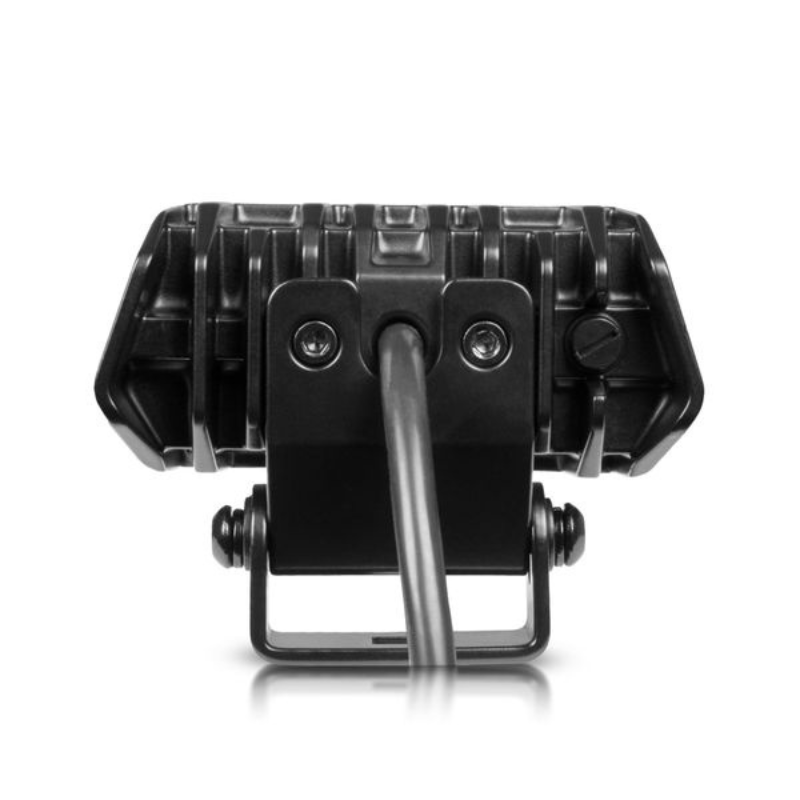

  • Aluminium housing for maximum durability.
  • Virtually unbreakable polycarbonate lens for long-lasting performance.
  • Intelligent temperature regulation to prevent overheating during extended use.

Easy Installation and Compatibility

Each light comes with a pre-installed DT-4 connector, with the matching counterpart included for a simple plug-and-play installation. With a wide operating voltage range (9-36V), the Panther Alpha 20 is compatible with both 12V and 24V systems.

Certified for Reliability

  • Panther Alpha 20 Spot: R149 road traffic approval for additional driving lights.
  • Panther Alpha 20 Wide: Designed for superior work lighting applications.
  • R10 Certification: Ensures protection against radio interference.
  • Three-year (36-month) warranty for peace of mind.

Note: If you want the parking light to flash, this can be achieved with a separate flasher relay.

Key Features:

General Features (Both Models)

  • Brand/Model: Purelux Panther Alpha 20 / Alpha 20 Spot
  • Application: Work light for vehicles, work machines, and heavy equipment
  • Operating Voltage: 9-36V (Wide) / 9-38V (Spot)
  • Power Consumption: ~19W (work light), ~5.5W (parking light)
  • Light Output: ~1390-1394 lumens (measured), 1500 lumens (manufacturer)
  • Colour Temperature: 5000K (manufacturer), ~5050K (measured)

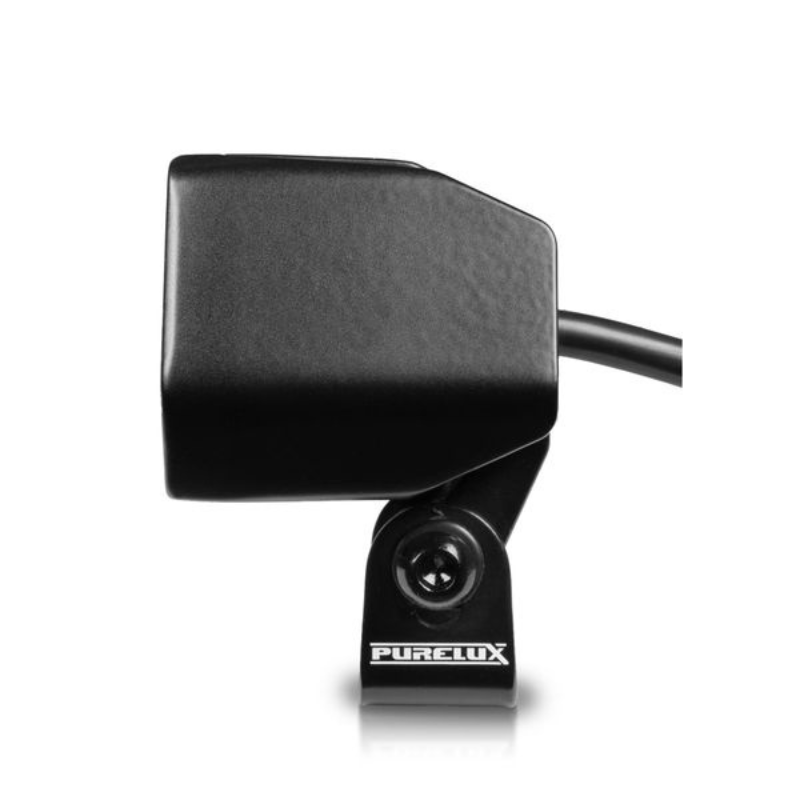

  • Mounting: Base mount
  • Connector: DT-4
  • Cable Length: 50 cm
  • Dimensions: 96 x 45 x 50 mm (Width x Height x Depth)
  • Height with Mount: 71 mm
  • Weight: 320 g
  • IP Rating: IP69K (high-pressure waterproof)
  • Operating Temperature: -40°C to +60°C
  • Approvals: ECE R10, R149, CE, RoHS
  • Warranty: 36 months

Wide Beam Model (Purelux Panther Alpha 20)

  • Beam Type: Wide beam pattern
  • Range: 56m @ 1 lux / 112m @ 0.25 lux
  • Approvals: ECE R23

Spot Beam Model (Purelux Panther Alpha 20 Spot)

  • Beam Type: Focused spot beam
  • Reference Number: 17.5
  • Range: 264m @ 1 lux / 528m @ 0.25 lux
  • Approvals: ECE R148

Standard Package:

  • Purelux Panther Alpha 20
  • Sturdy mounting leg
  • Fixing bolt
  • Power cable with DT-4 connector, 50 cm
  • The counterpart of the connector
  • Connection and installation instructions (EN, FI, SE, NO, DK)
