Purelux Square Worklight 90 HD Gen2 - 16 cm / 90W / Wide
Couldn't load pickup availability

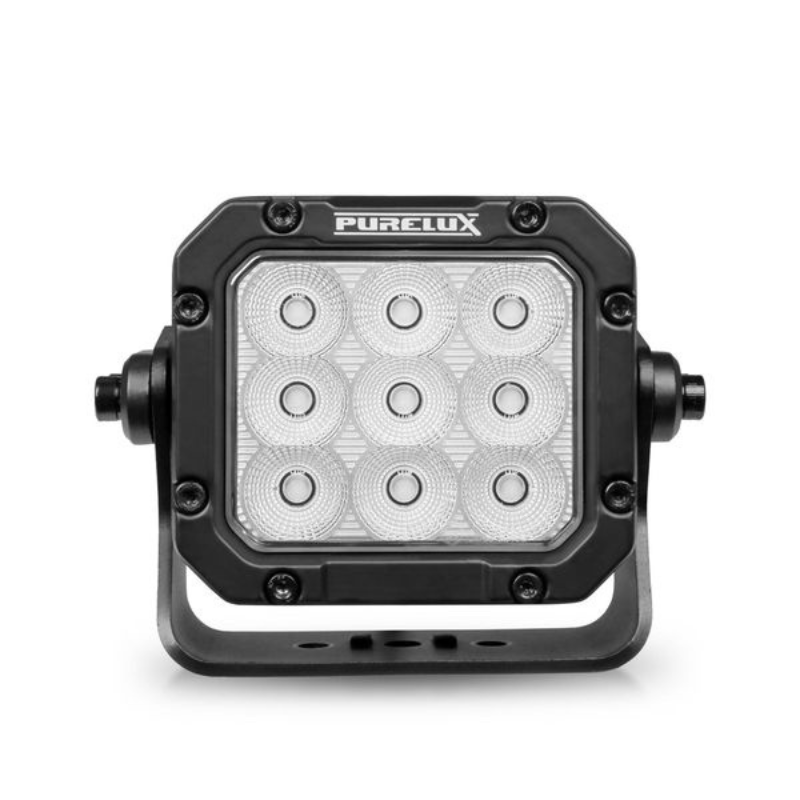

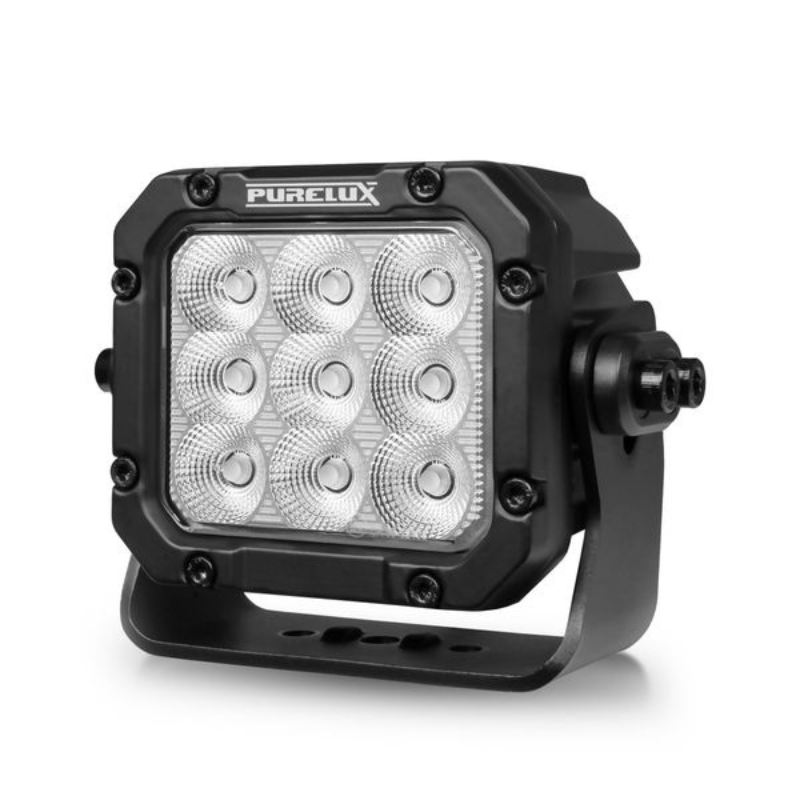

The Purelux Square 90 HD Gen2 is the updated version of the mid-range model in the HD series, designed for heavy professional use. Delivering 7508 lumens with a wide and even 85° beam pattern, it offers outstanding illumination with a measured range of 92 metres (@ 1 lux). Its excellent size-to-power ratio means it outperforms many larger lights, making it an ideal choice for heavy machinery such as excavators, tractors, and wheel loaders.
The neutral 5000K colour temperature is optimised for night-time use, enhancing detail recognition, accuracy, and sharpness while reducing eye strain during long hours of operation. Built with durability in mind, the Square 90 HD Gen2 features a stainless steel mounting foot for secure installation, a virtually unbreakable polycarbonate lens, and a powder-coated aluminium housing to resist corrosion and UV radiation. With a shock- and vibration-resistant design, advanced temperature regulation, IP69K waterproofing, and CISPR25 Class 4 protection against radio interference, it ensures reliable performance even in the harshest conditions.
Key features
- 7508 lumens with an 85° wide beam pattern
- Beam range up to 92 metres (@ 1 lux)
- Neutral 5000K colour temperature for comfortable visibility
- Compact size with an excellent size-to-output ratio
- Durable polycarbonate lens and aluminium housing

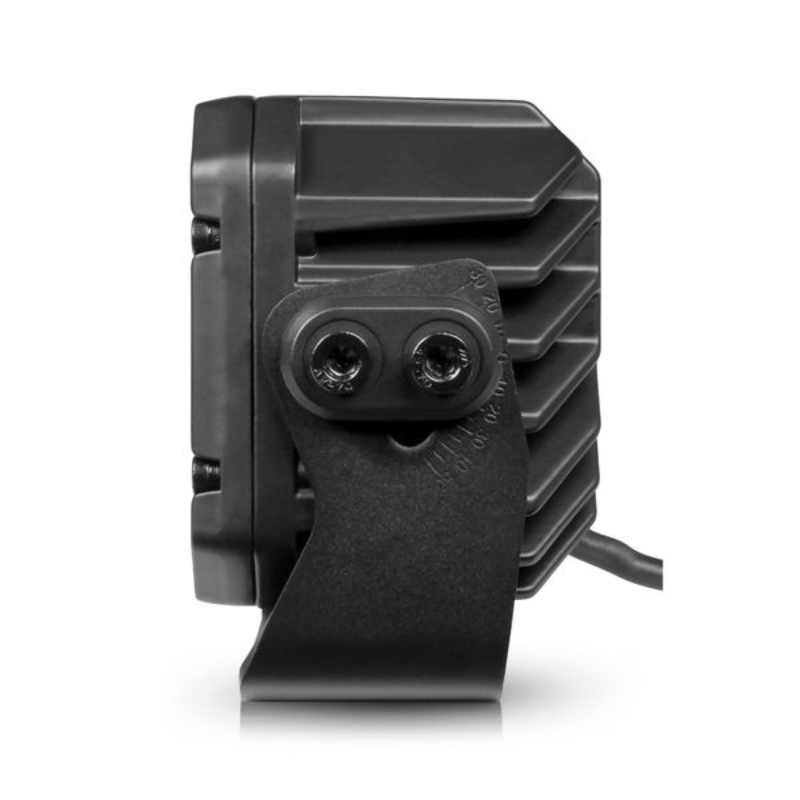

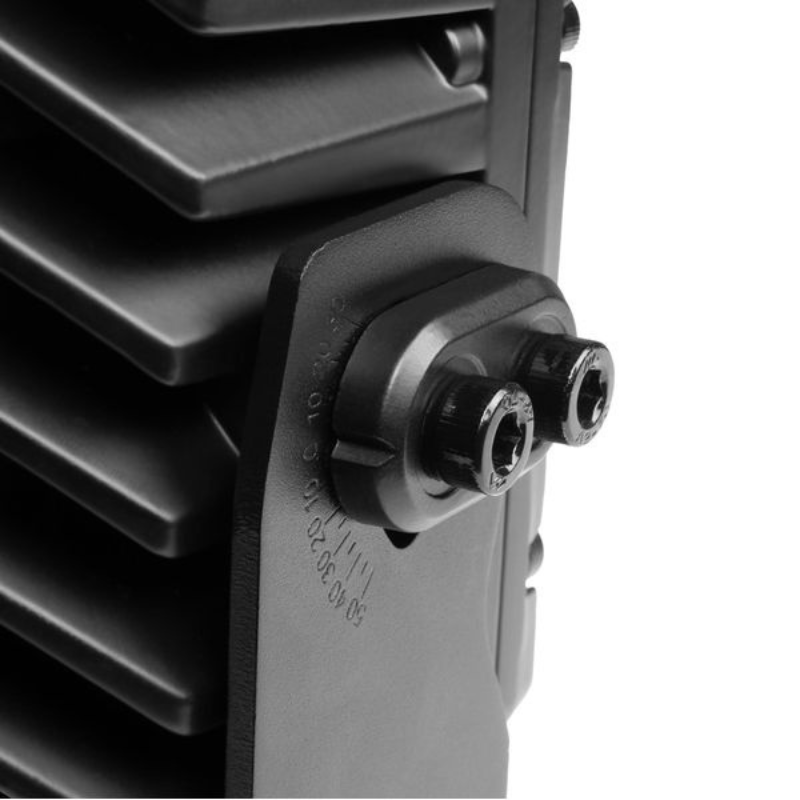

- Stainless steel mounting foot for secure installation
- Shock- and vibration-resistant structure

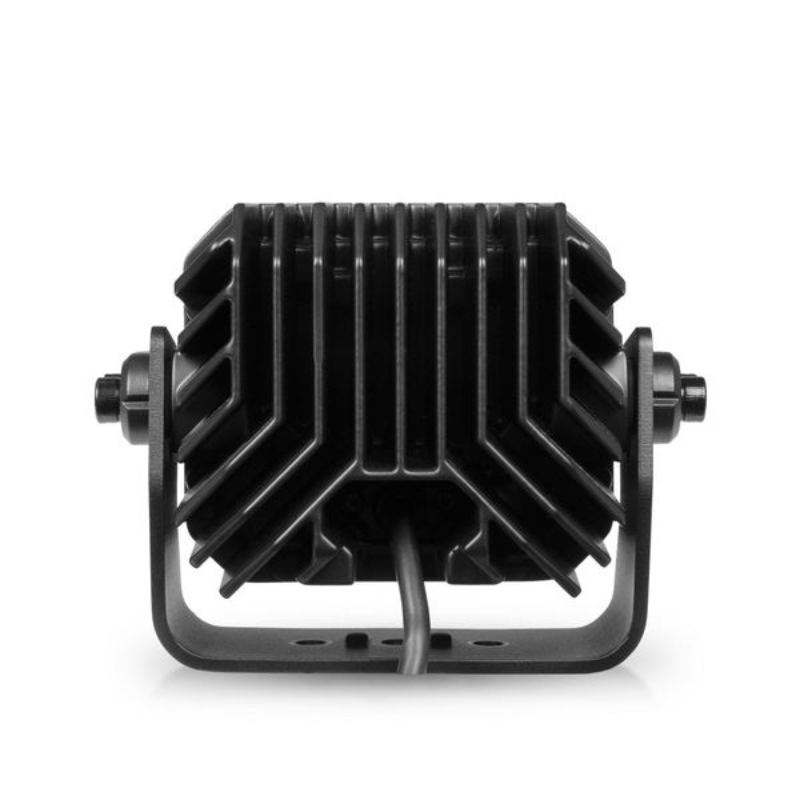

- Advanced thermal management system
- IP69K waterproof and dustproof rating
- Protected against radio interference (CISPR25 Class 4)
Delivery content
- Purelux Square 90 HD Gen2
- Sturdy mounting foot
- Fixing bolt (M10)
- Rubber covers

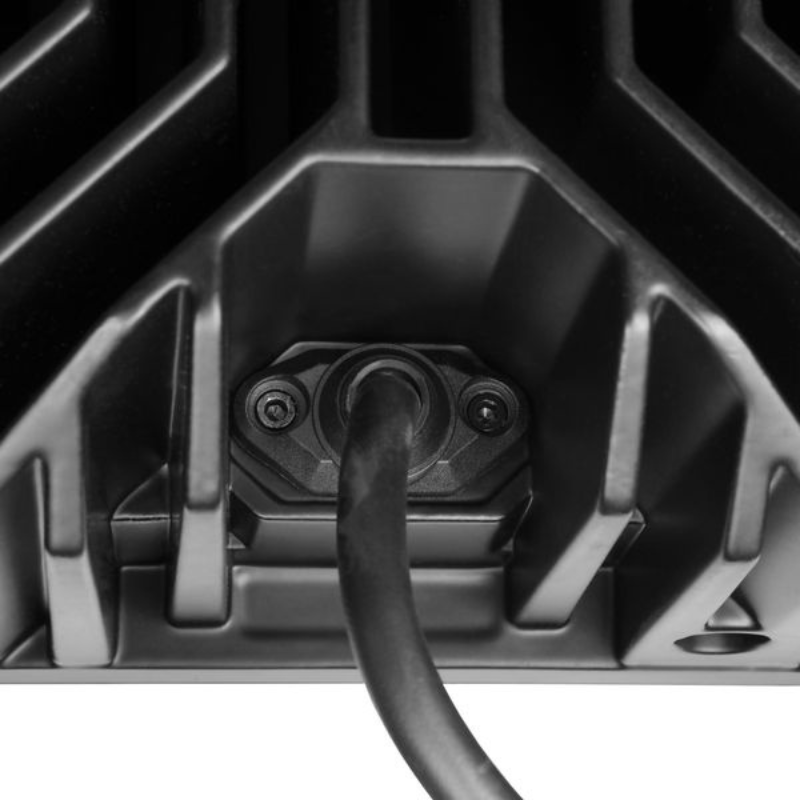

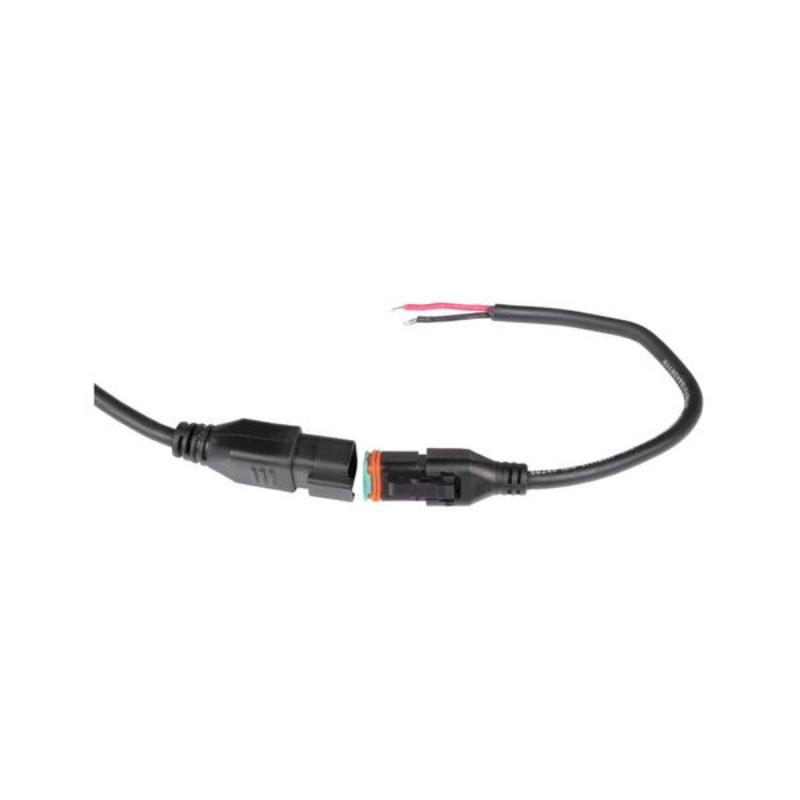

- Power cable with DT2 connector (50 cm)
- Connector counterpart
- Connection and installation instructions (EN/FI/SE/NO/DK)
Technical specifications
- Product: Purelux Square 90 HD Gen2
- Purpose: Work light for machinery, heavy equipment, and vehicles
- Operating voltage: 9–32 V
- Current consumption (measured): 6 A @ 12V / 3 A @ 24V
- Theoretical power (manufacturer): 90 W
- Measured power: 72 W
- Light output (manufacturer): 7650 lm
- Light output (measured): 7508 lm
- Range (measured): 92 m @ 1 lux / 184 m @ 0.25 lux
- Colour temperature (manufacturer): 5000 K
- Colour temperature (measured): 5149 K
- Mounting: Base mount with stainless steel foot
- Connector: DT-2
- Cable length: 50 cm
- Dimensions: 162 × 110 × 87 mm (W × H × D)
- Height with mounting foot: 130 mm
- Weight: 2100 g
- IP rating: IP69K
- Operating temperature: –45°C to +85°C
- Approvals: ECE R10, CISPR25 Class 4, RoHS
- Warranty: 24 months
