Purelux Square Worklight 60 HD Gen2 - 14 cm / 60W / Wide
Couldn't load pickup availability

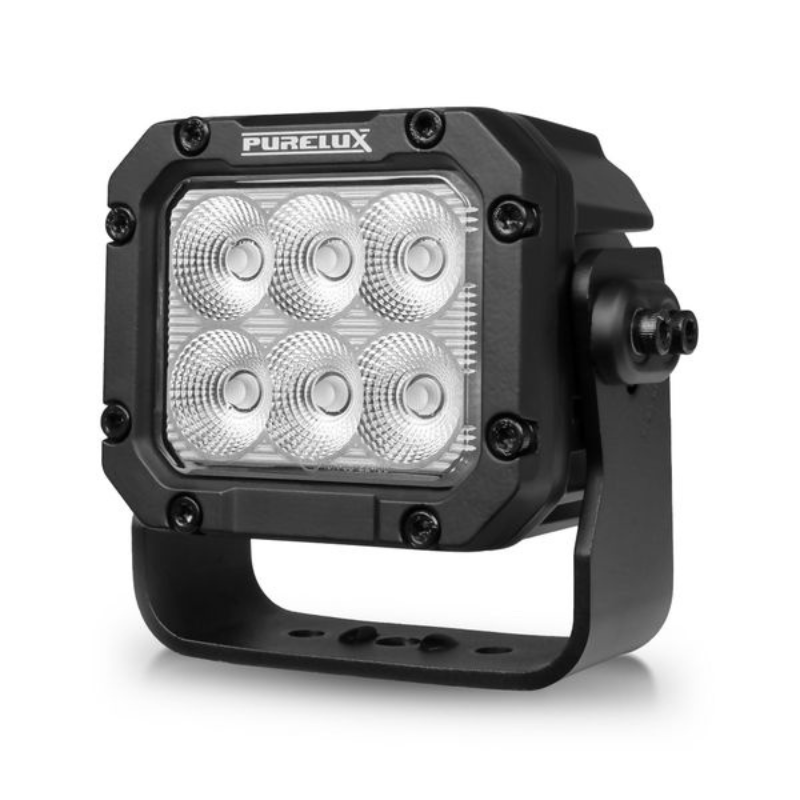

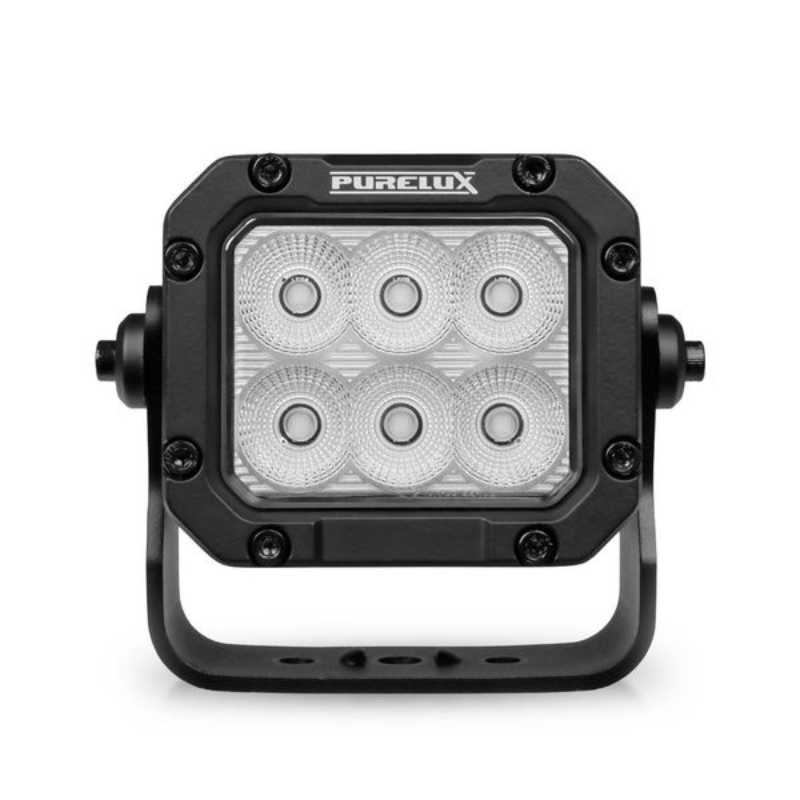

The Purelux Square 60 HD Gen2 is an updated version of one of the smallest lights in the HD series, designed for heavy-duty professional use. Delivering 4682 lumens with a wide and even 85° beam pattern, it provides excellent illumination of the immediate work area. With a measured beam range of 73 metres (@ 1 lux), this compact light is ideal for smaller work machines, excavator booms, the bases of heavy equipment, and other applications requiring both small size and high light output.
The neutral 5000K colour temperature is optimised for nighttime use, improving detail recognition, sharpness, and visual comfort during extended operation. Built for durability, the Square 60 HD Gen2 features a stainless steel mounting foot for secure installation, a virtually unbreakable polycarbonate lens, and a powder-coated aluminium housing that protects against corrosion and UV radiation. With a shock- and vibration-resistant structure, advanced temperature regulation, and IP69K waterproofing, it ensures reliable performance in the most demanding environments. In addition, the light is protected against radio interference under the CISPR25 Class 4 classification.
Key features
- 4682 lumens with an 85° wide beam pattern
- Beam range up to 73 metres (@ 1 lux)
- Neutral 5000K colour temperature for eye comfort
- Durable polycarbonate lens and aluminium housing

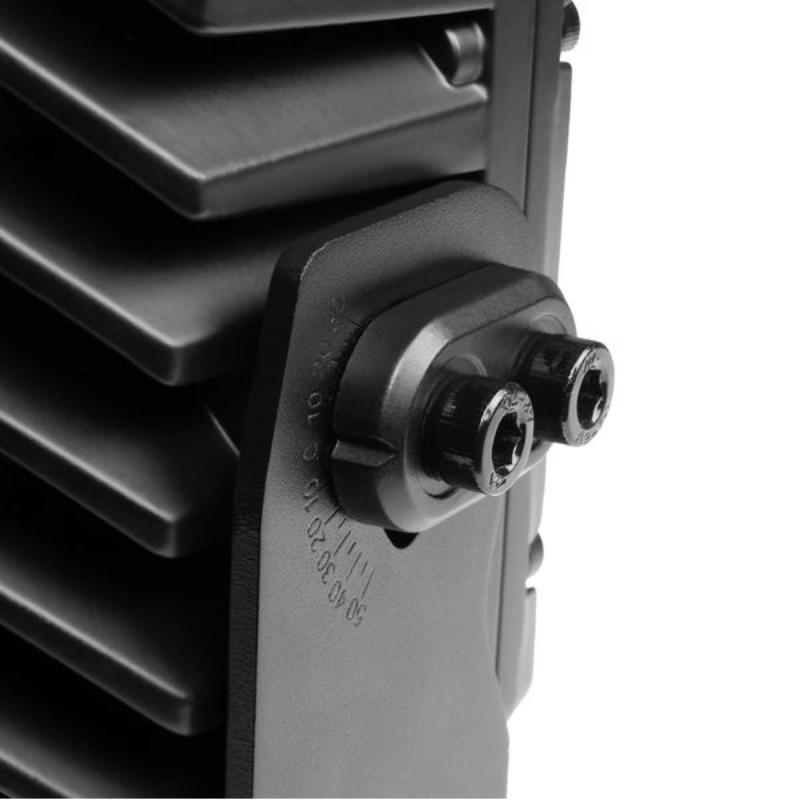

- Stainless steel mounting foot for stable installation
- Shock- and vibration-resistant construction
- Advanced thermal management for reliability
- IP69K waterproof and dustproof rating
- Protected against radio interference (CISPR25 Class 4)
Delivery content
- Purelux Square 60 HD Gen2
- Sturdy mounting foot
- Fixing bolt (M10)
- Rubber covers

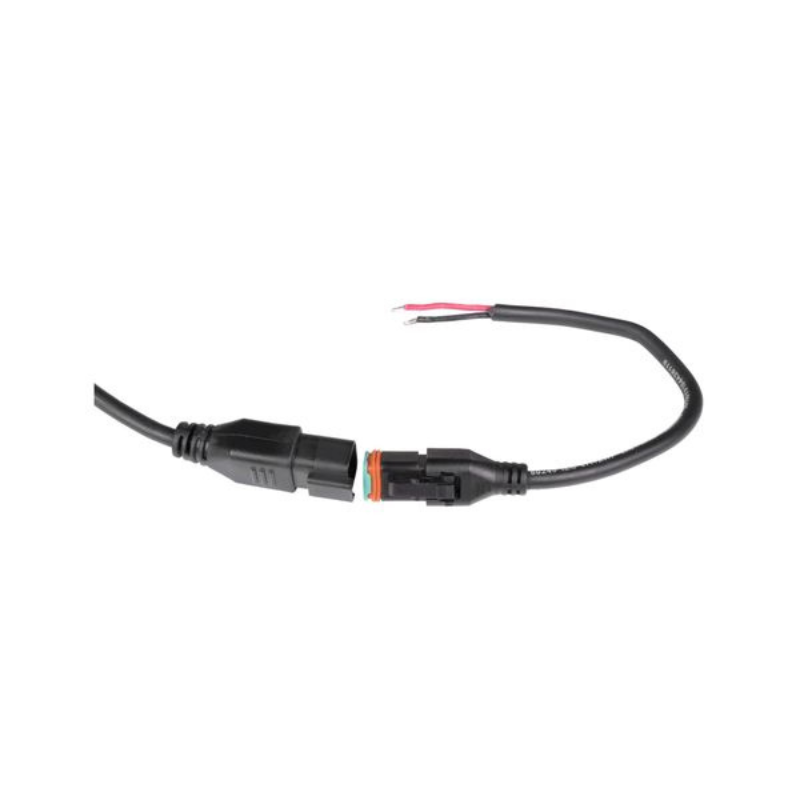

- Power cable with DT2 connector (50 cm)
- Connector counterpart
- Connection and installation instructions (EN/FI/SE/NO/DK)
Technical specifications
- Product: Purelux Square 60 HD Gen2
- Purpose: Work light for machinery, heavy equipment, and vehicles
- Operating voltage: 9–32 V
- Power consumption (measured): 3.66 A @ 12V / 1.83 A @ 24V
- Theoretical power (manufacturer): 60 W
- Measured power: 44 W
- Light output (manufacturer): 5100 lm
- Light output (measured): 4682 lm
- Range (measured): 73 m @ 1 lux / 146 m @ 0.25 lux
- Colour temperature (manufacturer): 5000 K
- Colour temperature (measured): 4952 K
- Mounting: Base mount with stainless steel foot
- Connector: DT-2
- Cable length: 50 cm
- Dimensions: 144 × 95 × 83 mm (W × H × D)
- Height with mounting foot: 123 mm
- Weight: 1500 g
- IP rating: IP69K
- Operating temperature: –45°C to +85°C
- Approvals: ECE R10, CISPR25 Class 4, RoHS
- Warranty: 24 months
