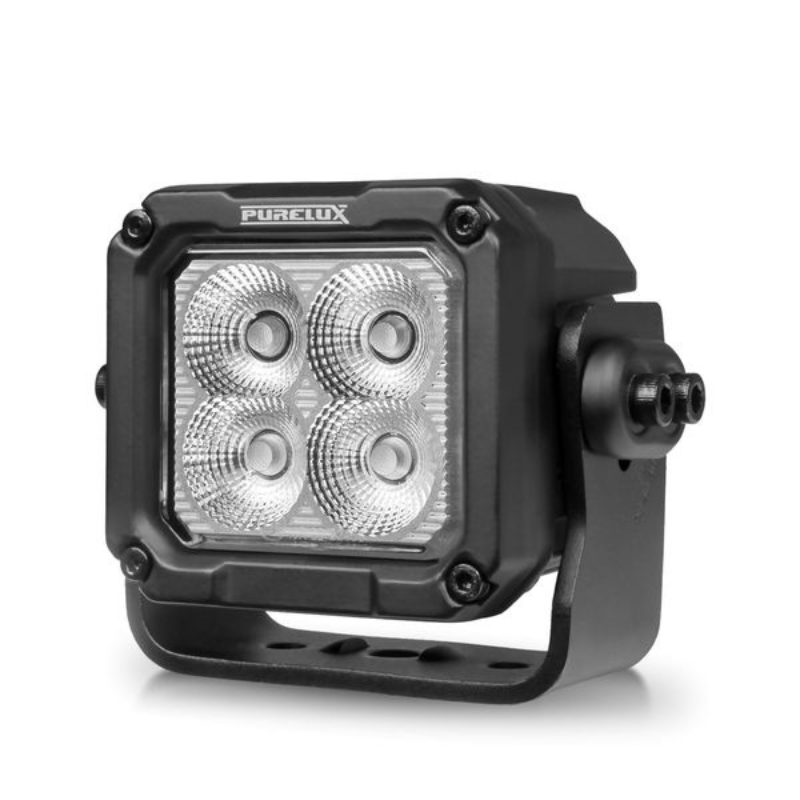

Purelux Square Worklight 40 HD ADR - 12 cm / 40W / Flood
Couldn't load pickup availability
The Purelux Square 40 HD ADR is a compact and durable work light from the HD series, designed for heavy professional use. Equipped with ADR approval, it is suitable for vehicles transporting dangerous goods, making it a reliable choice for demanding industries. Despite its small size, it produces a measured 2860 lumens with a wide and even 85° beam pattern, delivering excellent illumination of nearby areas. With a measured beam range of 71 metres (@ 1 lux), it is ideal for work machines, heavy equipment, and vehicle applications.
The neutral 5000K colour temperature is optimised for night-time use, ensuring sharpness, accuracy, and reduced eye strain during extended operation. Built to last, the Square 40 HD ADR features a stainless steel mounting foot for secure installation, a virtually unbreakable polycarbonate lens, and a powder-coated aluminium housing for protection against corrosion and UV radiation. With a shock- and vibration-resistant design, advanced thermal management, IP69K waterproofing, and CISPR25 Class 4 interference protection, it guarantees reliable performance even in the harshest conditions.
Key features
- ADR-approved work light for hazardous goods transport
- 2860 lumens with an 85° wide beam pattern
- Beam range up to 71 metres (@ 1 lux)
- Neutral 5000K colour temperature for comfortable visibility
- Durable polycarbonate lens and aluminium housing
- Stainless steel mounting foot for secure installation
- Shock- and vibration-resistant construction
- Advanced thermal management system
- IP69K waterproof and dustproof rating
- Protected against radio interference (CISPR25 Class 4)
Delivery content
- Purelux Square 40 HD ADR
- Sturdy mounting foot
- Fixing bolt (M10)
- Rubber covers
- Power cable with DT2 connector (50 cm)
- Connector counterpart
- Connection and installation instructions (EN/FI/SE/NO/DK)
Technical specifications
- Product: Purelux Square 40 HD ADR
- Purpose: Work light for machinery, heavy equipment, and vehicles
- Operating voltage: 9–32 V
- Power consumption (measured): 2.33 A @ 12V / 1.16 A @ 24V
- Theoretical power (manufacturer): 40 W
- Measured power: 28 W
- Light output (manufacturer): 3400 lm
- Light output (measured): 2860 lm
- Range (measured): 71 m @ 1 lux / 142 m @ 0.25 lux
- Colour temperature (manufacturer): 5000 K
- Colour temperature (measured): 5024 K
- Mounting: Base mount with stainless steel foot
- Connector: DT-2
- Cable length: 50 cm
- Dimensions: 120 × 82 × 77 mm (W × H × D)
- Height with mounting foot: 96 mm
- Weight: 1100 g
- IP rating: IP69K
- Operating temperature: –25°C to +105°C
- Approvals: ECE R10, CISPR25 Class 4, ADR compliant
- Warranty: 24 months
