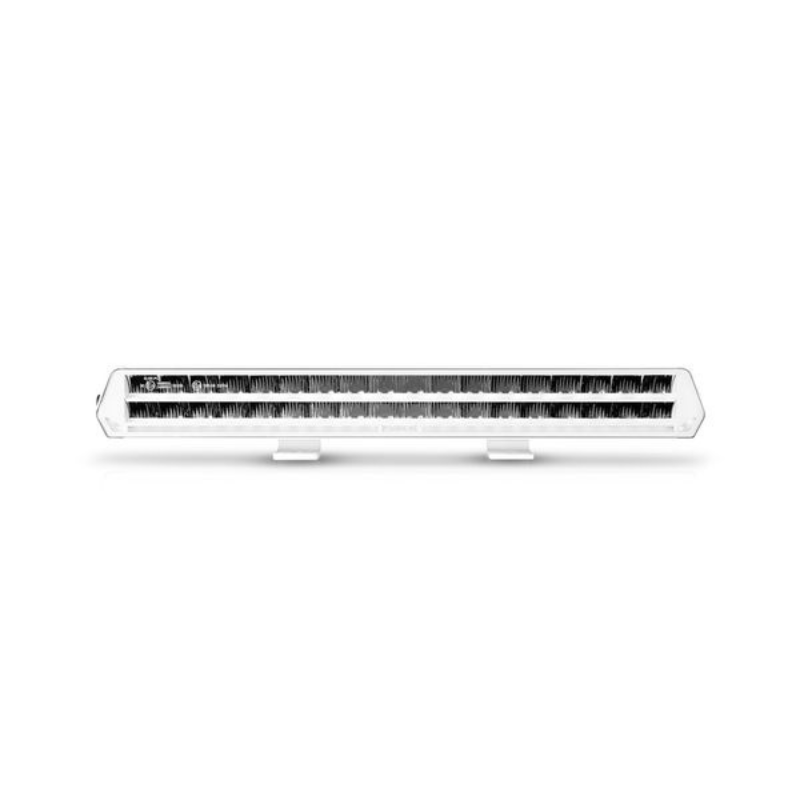

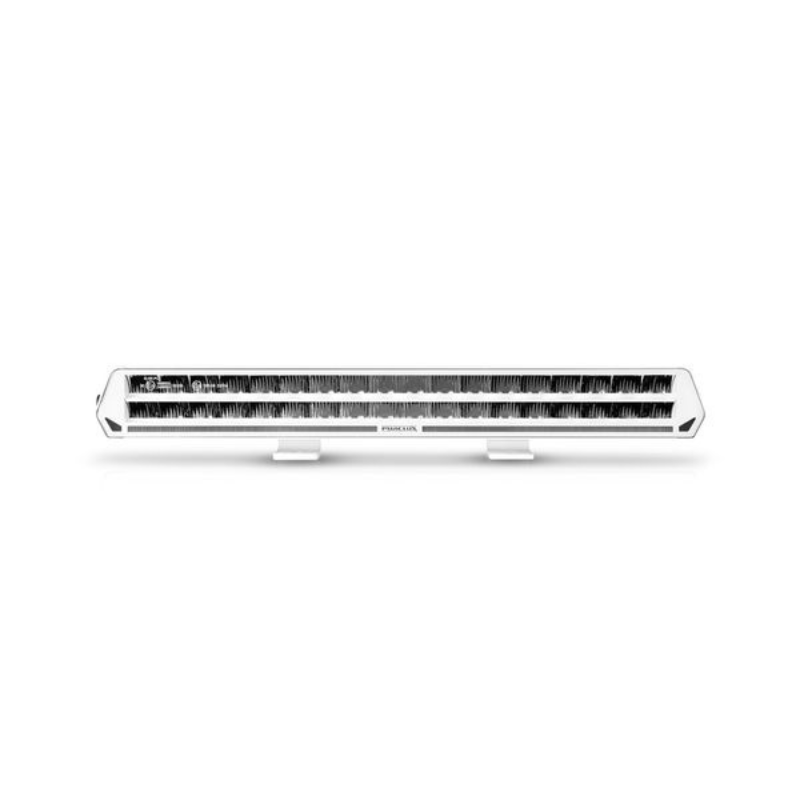

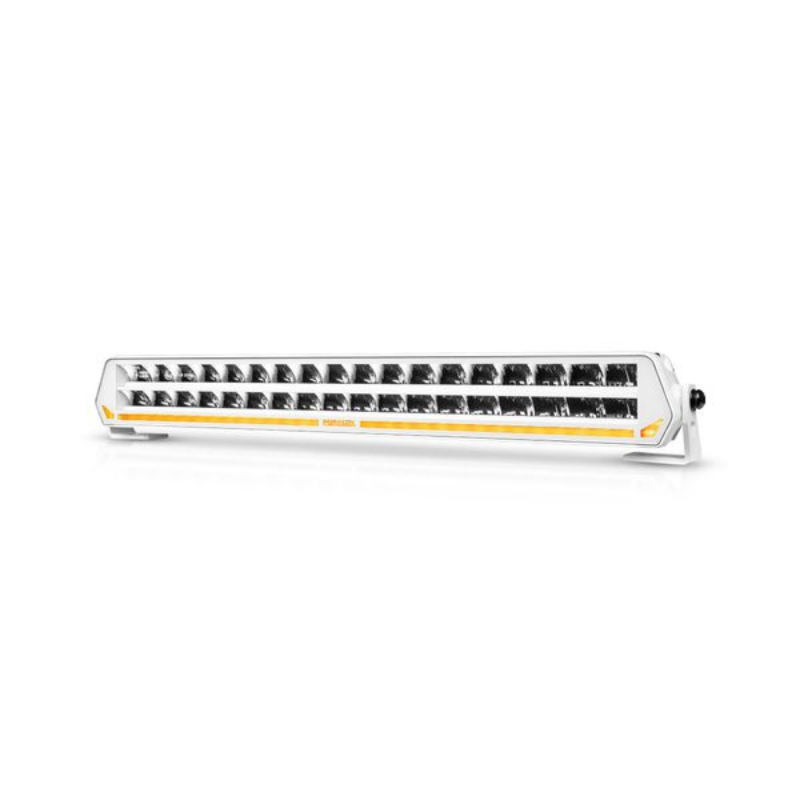

Purelux Panther S540 White LED Lightbar - Straight / 54 cm / 216W / Ref. 30

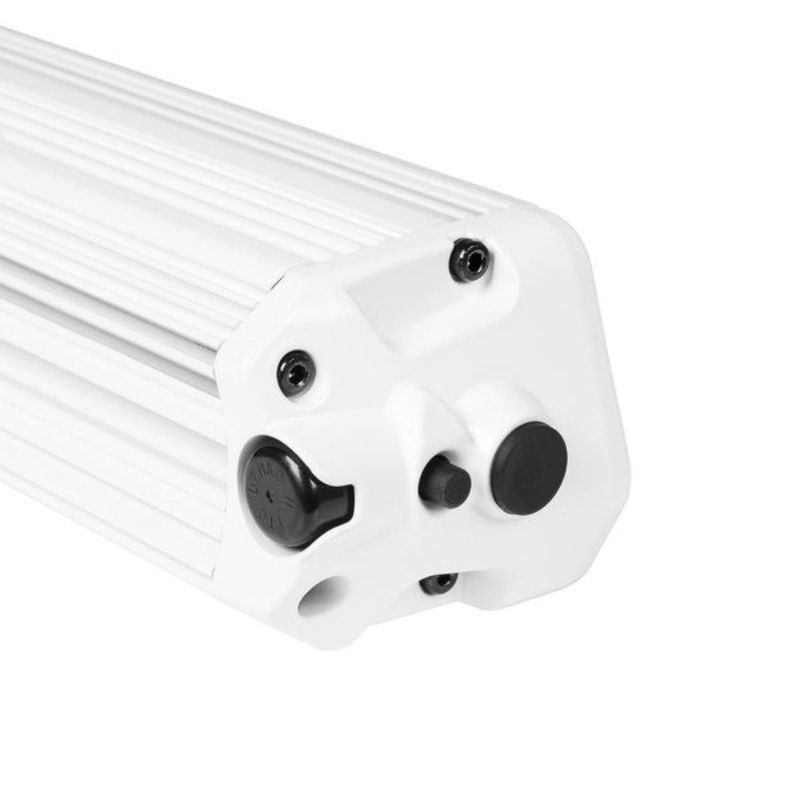

The Purelux Panther S540 Gen3 White is a highly efficient LED bar that combines fierce performance with an optimised beam for road traffic and a stylish design. This model offers two different power modes, allowing you to choose either the approved road mode or the PowerBoost® mode for maximum output. Switching between the modes is simple and can be done by pressing the button on the lamp body, without any complicated wiring. The lamp also remembers the last mode used, making operation effortless.

The PowerBoost® mode delivers a measured output of 15,238 lumens with a range of up to 645 metres (@ 1 lux). This makes the Panther S540 Gen3 White an excellent choice for demanding conditions and off-road use, while still being suitable for road traffic in the standard mode.

The beam pattern combines long-range illumination with excellent width, opening immediately from the front of the vehicle and covering the road from kerb to kerb. A brighter central spot provides strong forward reach, while vertical cut-off keeps the light controlled and optimal for vehicle-mounted use. The neutral 5000K colour temperature improves visibility by reducing glare from snow, fog, or rain, and minimises eye strain on long drives.

Built for durability, the Panther S540 Gen3 White features a frameless Lexa polycarbonate lens, a strong aluminium housing, and a high-quality coating that protects against UV radiation, corrosion, chemicals, and harsh weather. With an IP69K rating, the light is fully sealed and resistant to extreme conditions. Stylish design details such as a two-colour parking light and dark optics complete the modern look.

Key features

• PowerBoost® technology for maximum performance
• Two selectable power modes with push-button control
• Light output up to 15,238 lumens and 645 metres (@ 1 lux)
• Neutral 5000K colour temperature for reduced eye strain
• Combination beam with excellent range and width
• Stylish two-colour parking light
• Frameless Lexa polycarbonate lens for durability
• Easy mounting with end feet or bottom legs
• IP69K-rated housing for maximum protection

Delivery content

• Purelux Panther S540 Gen3 White
• 2 × Width-adjustable lower legs
• 2 × End feet
• Power cable counterpart
• Connection and installation instructions (FI/SE/NO/DK/EN)

Technical specifications

• Product: Purelux Panther S540 Gen3 White

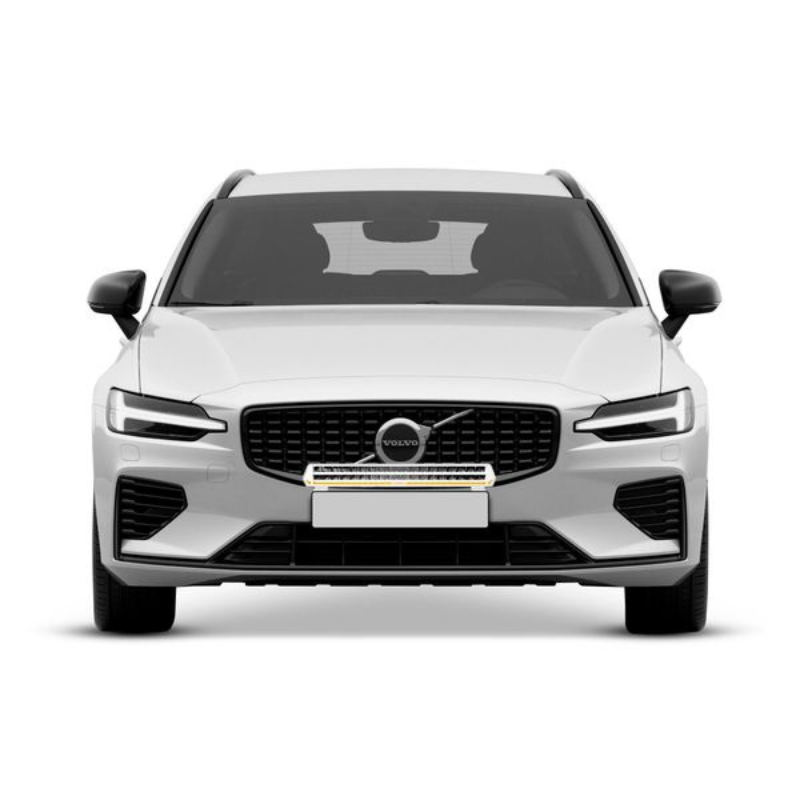

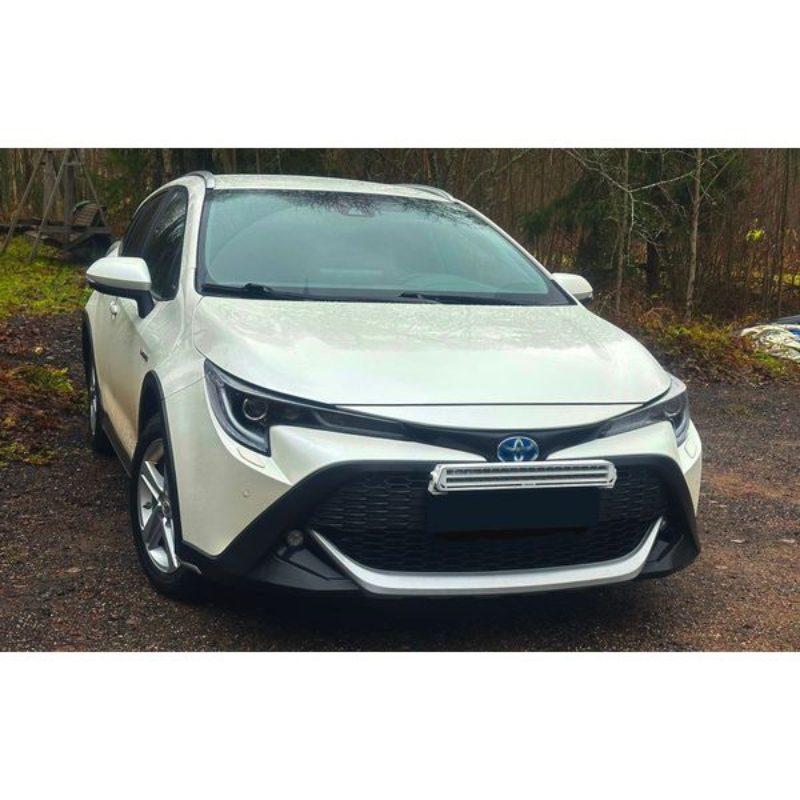

• Purpose: Auxiliary light for cars, off-road vehicles, and work machines
• LEDs: 36 × 6W
• Operating voltage: 9–32 V (DC)
• Reference number: 30
• Calculated power: 216 W
• Power consumption (PowerBoost®): 7.83 A @ 24V
• Power consumption (Road mode): 1.58 A @ 24V
• Measured power (PowerBoost®): 188 W @ 24V
• Measured power (Road mode): 38 W @ 24V
• Parking light: 4 W
• Light output declared (manufacturer): 16,300 lm (PowerBoost®)
• Light output measured: 15,238 lm (PowerBoost®) / 4,300 lm (Road mode)
• Range measured: 645 m @ 1 lux / 1290 m @ 0.25 lux (PowerBoost®)
• Range measured (Road mode): 340 m @ 1 lux / 680 m @ 0.25 lux
• Colour temperature (manufacturer): 5000 K
• Colour temperature (measured): 5050 K

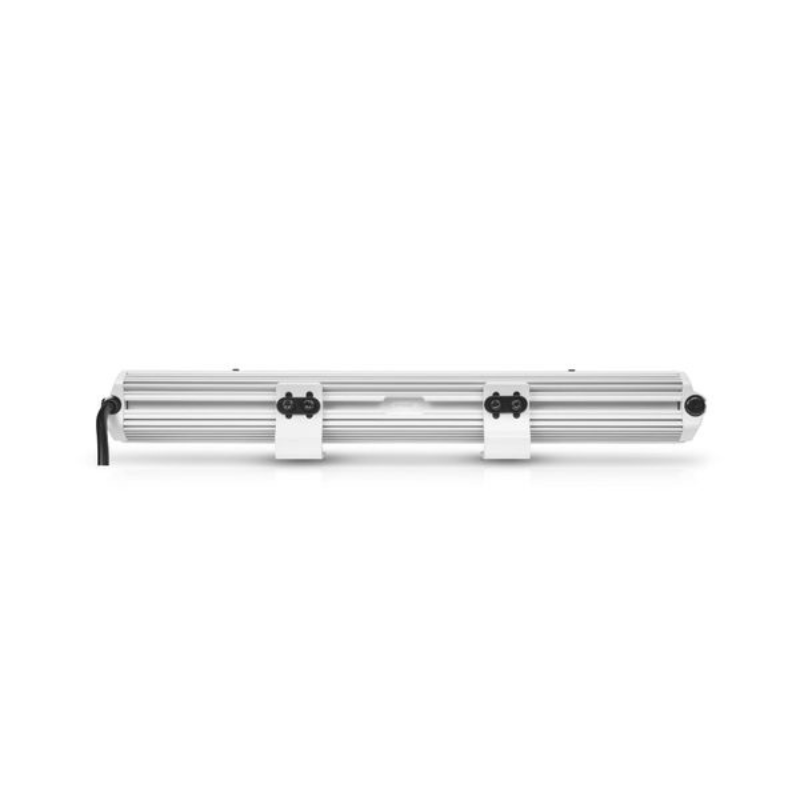

• Fastening: End feet and width-adjustable lower legs
• Connector: DTP-2 (separate parking light wires)
• Cable length: 50 cm
• Dimensions: 540 × 66 × 70 mm (W × H × D)
• Height with end feet: 78 mm
• Height with lower legs: 81.5 mm
• Weight: 2363 g
• IP rating: IP69K
• Approvals: ECE R10, R7, R112*
• Other: Mounting points for stabilisers provided
• Warranty: 24 months

*Road traffic approval does not apply to the PowerBoost® mode.
