  3. Purelux Panther Aero S540 Gen2 Led Lightbar - Straight / 54 cm / 108W / Ref. 25
By Purelux

Purelux Panther Aero S540 Gen2 Led Lightbar - Straight / 54 cm / 108W / Ref. 25

£131.00
£131.00
Shipping calculated at checkout.
Brand: Purelux
Availability: Low stock: 10 left
Brand Code: PURELUXS540
£131.00
£131.00

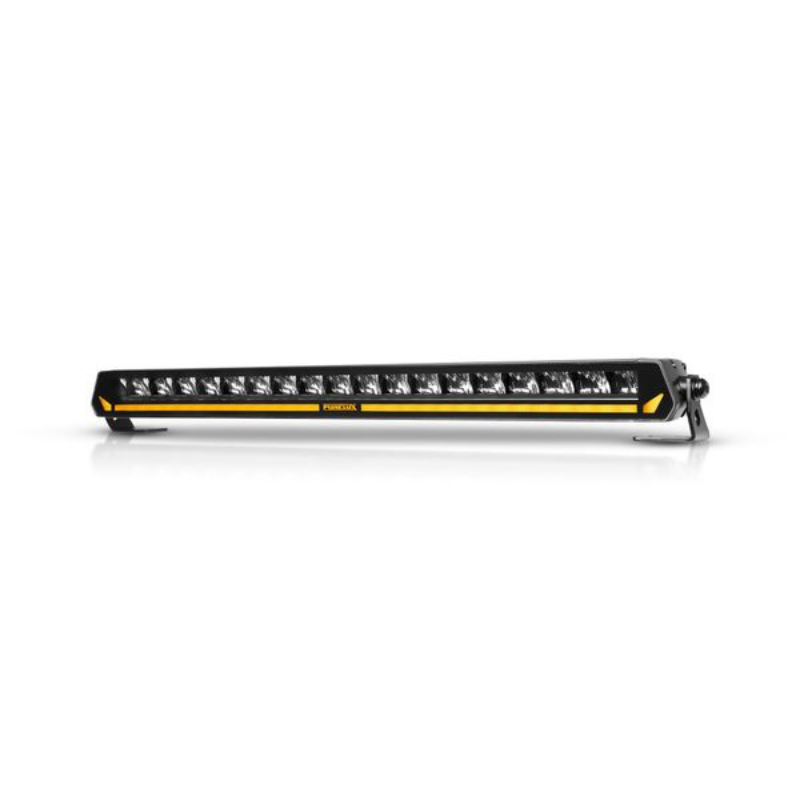

The Purelux Panther Aero S540 Gen2 is an aerodynamically designed auxiliary light that combines sleek aesthetics with impressive performance, making it one of the best single-row light panels available. Its dark optics, frameless lens, low-profile design, and dual-colour parking light (orange/white) offer a modern and stylish appearance. With two power modes, it delivers a road-legal mode and the powerful Purelux PowerBoost® mode, producing up to 8151 lumens and a range of 479 metres at 1 lux. Switching between modes is effortless with a button on the top, and the last used mode is stored for convenience.

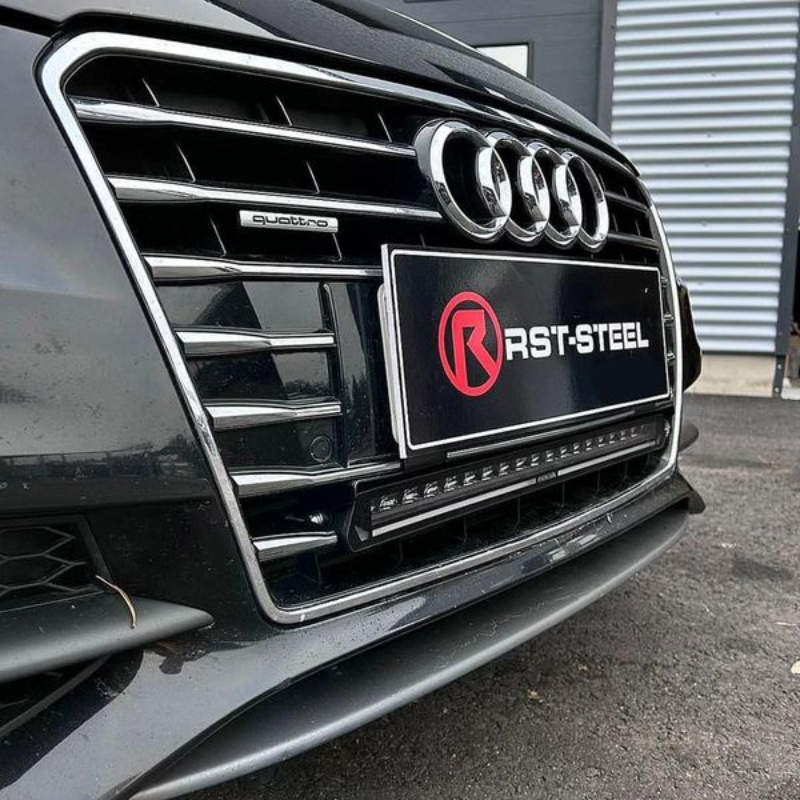

The curved design creates a wide, rectangular beam that illuminates roadsides, ditches, and wooded areas effectively, making it ideal for bow or roof-mounted installations. Compared to the straight model, the curved version offers a 50% wider beam, perfect for maximizing the illuminated area, while the straight model focuses on extending the beam’s reach. The neutral 5000K colour temperature enhances visibility by reducing glare, preserving natural colours, and performing better in poor weather conditions, making it optimal for road traffic and compatible with LED or Xenon headlights.

Key Features:

  • Two power modes (Purelux PowerBoost®)
  • Long-lasting combination wedge
  • 8151 lumens, 479 meters (@ 1 lux)
  • Pleasant 5000K colour temperature
  • Aerodynamic and low-profile design
  • Stylish bi-colour parking light
  • Frameless Lexan polycarbonate lens
  • Easy attachment with head or foot mounts

Specifications:

  • Make/Model: Purelux Panther Aero S540
  • Application: Auxiliary light for cars, off-road vehicles, and work vehicles
  • LED Configuration: 18 x 6W LEDs
  • Operating Voltage: 9-36 V DC
  • Reference Number: 25
  • Power:
    • Rated: 108 W
    • Purelux PowerBoost®: 10.41A @ 12V / 4.12A @ 24V
    • Road Mode: 2.91A @ 12V / 1.29A @ 24V
  • Light Output:
    • Manufacturer Declared: 7500 lm (Purelux PowerBoost®)
    • Measured: 8151 lm (Purelux PowerBoost®), 3241 lm (Road mode)
  • Range:
    • Purelux PowerBoost®: 479 m @ 1 lux / 958 m @ 0.25 lux
    • Road Mode: 303 m @ 1 lux / 606 m @ 0.25 lux
  • Colour Temperature:
    • Declared: 5000 K
    • Measured: 5050 K
  • Mounting: End feet or adjustable lower feet
  • Connector: Deutsch DT-2
  • Parking Lights: Separate wires
  • Cable Length: 50 cm
  • Dimensions: 540 x 42 x 62.5 mm (Width x Height x Depth)
  • Height: 57 mm (end feet) / 62 mm (lower feet)
  • Weight: 1500 g
  • IP Rating: IP68/IP69K
  • Approvals: CE, ECE R10, R148, R149* (*PowerBoost® mode not road-approved)

Standard Package:

  • Purelux Panther Aero S540
  • 2 x Width-adjustable footrests
  • 2 x Headrests
  • Power cable connector
  • Wiring and installation instructions (EN/SE/NO/DK/EN)
