Purelux Panther Aero S300 Led LightBar - Straight / 30 cm / 54W / Ref. 17.5

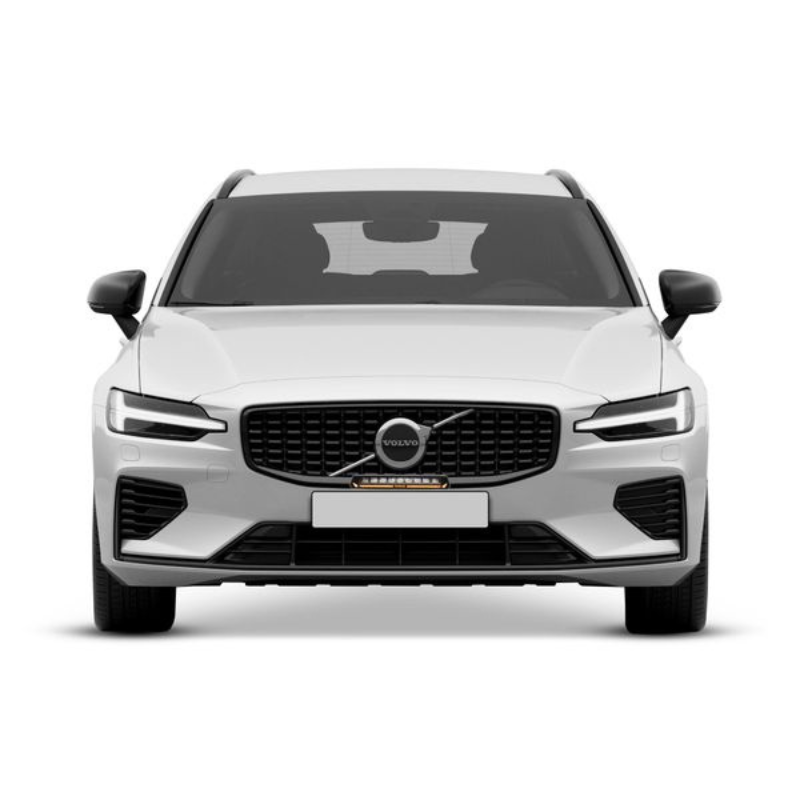

The Purelux Panther Aero S300 Gen2 is a compact, aerodynamically shaped auxiliary light panel designed to deliver both performance and style. Despite its small size, this light offers an excellent size-to-power ratio, producing up to 3930 lumens (lm) of measured output and a 352 metre range (@ 1 lux) in Purelux PowerBoost® mode. Thanks to advanced reflector technology, the beam is long-range and combination-patterned, meaning it not only projects far ahead but also spreads bright light to the sides of the road without forming a distracting hotspot. Vertical beam limits ensure the light is directed exactly where it’s needed, making it possible to mount the lamp even close to the road surface, such as below the license plate.

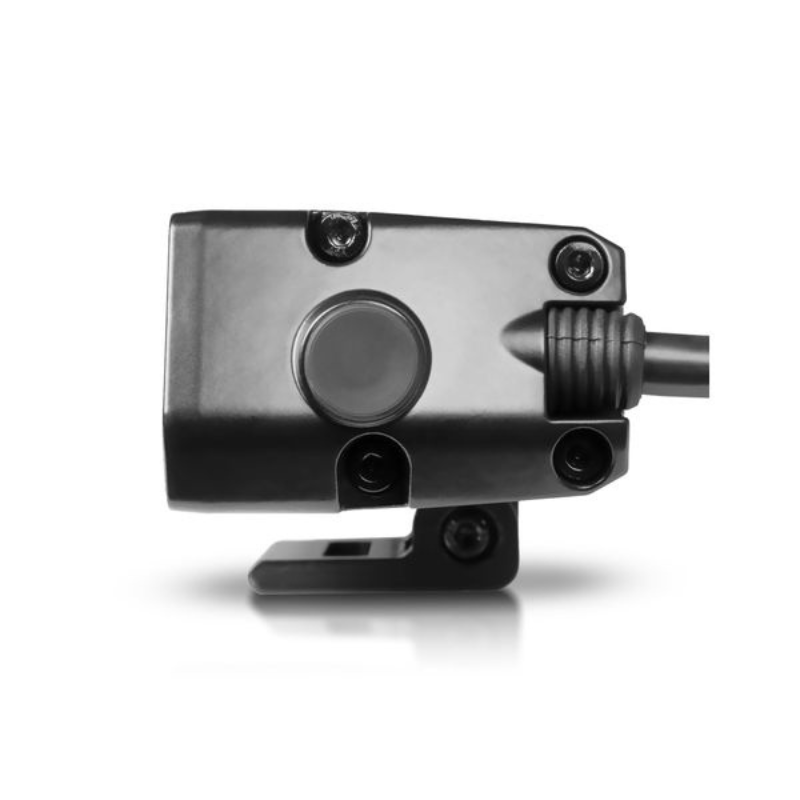

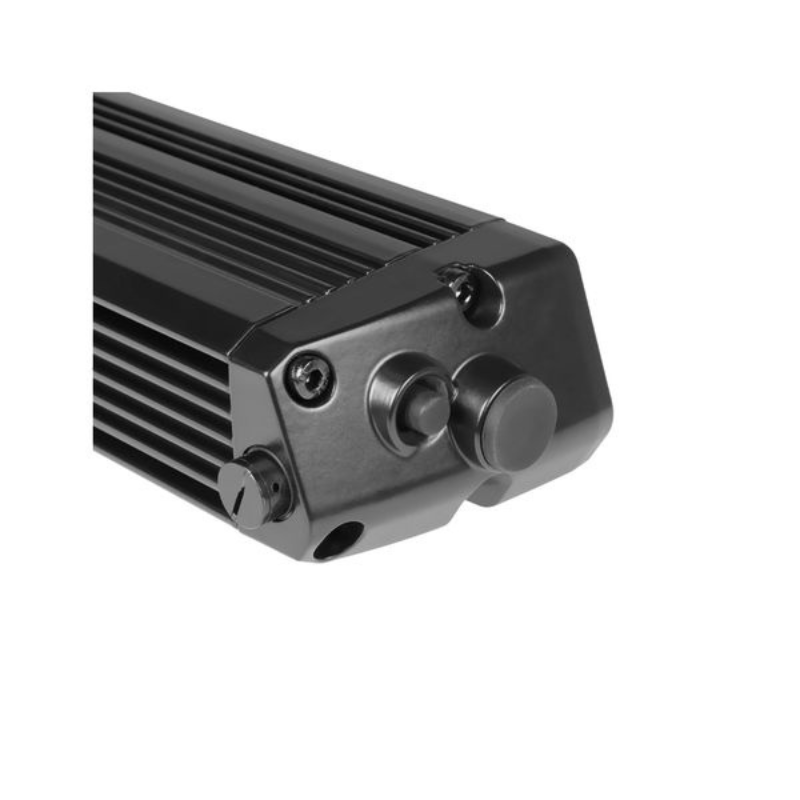

Equipped with two selectable power modes, the S300 Gen2 allows you to switch easily between road-legal mode and PowerBoost® mode via the button at the end of the lamp — no wiring changes needed. The light “remembers” the last used mode, so when the vehicle is restarted it will remain in that setting. With its neutral 5000K colour temperature, the beam is pleasant on the eyes, enhances contrast, and reduces reflections from snow, rain, and fog, making driving safer and less fatiguing.

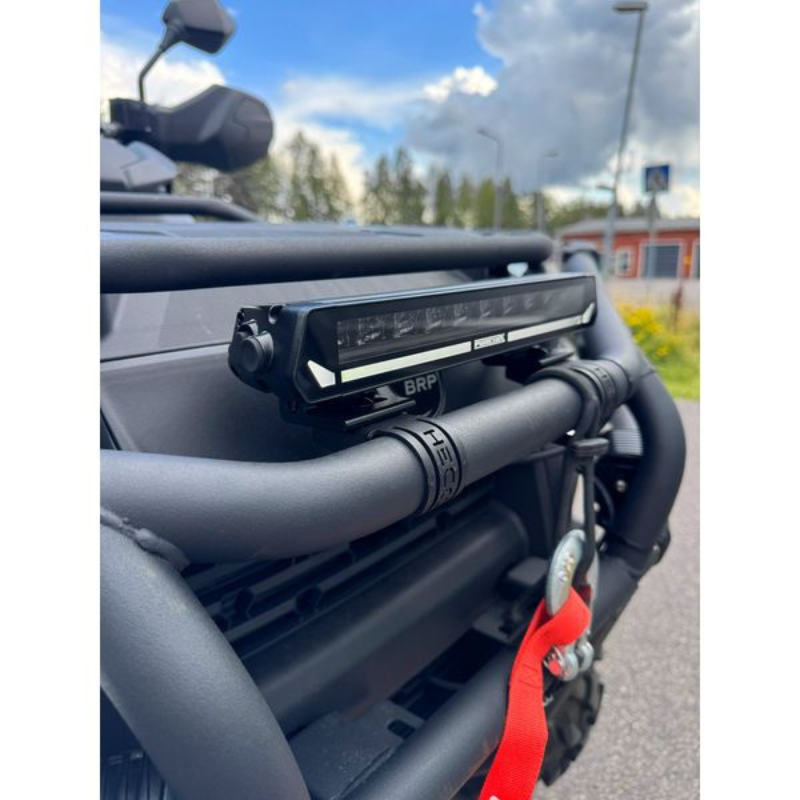

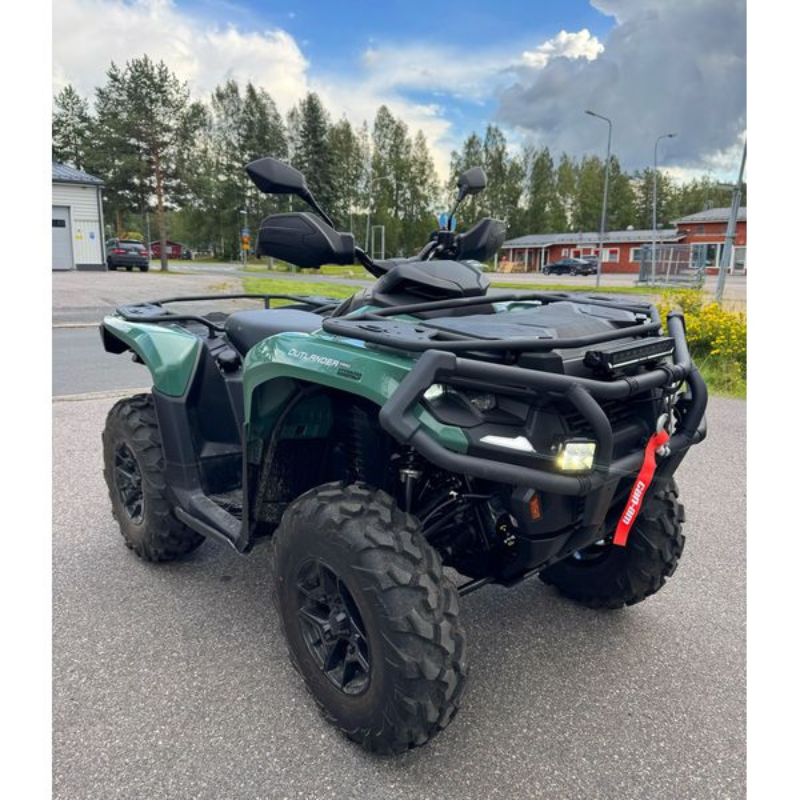

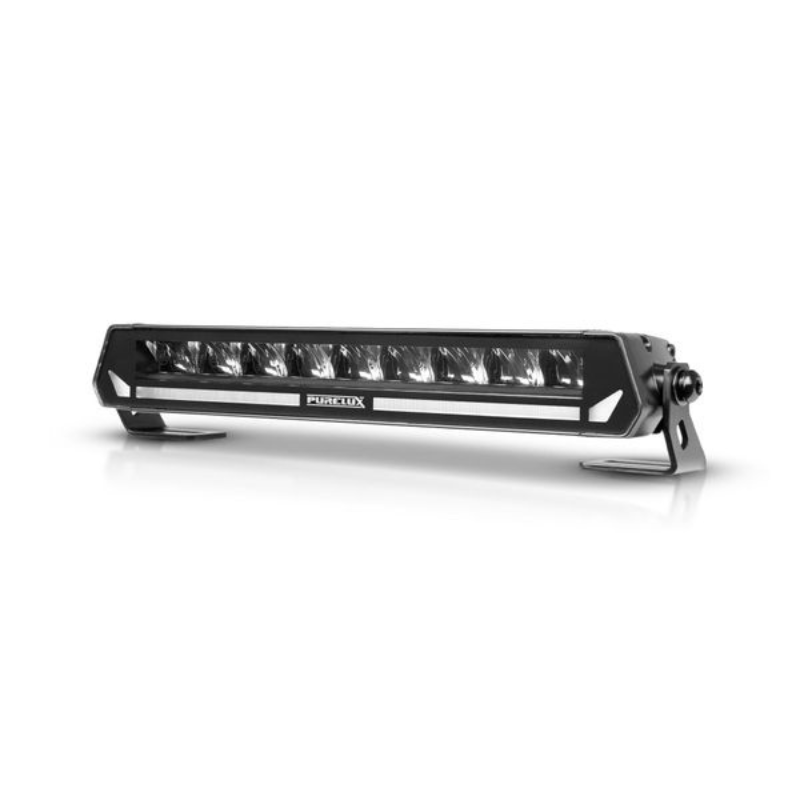

In addition to its excellent performance, the Panther Aero S300 Gen2 has a stylish design featuring a frameless Lexa polycarbonate lens, sleek black profile, and an integrated two-colour parking light (amber or white). Built for durability, it features a powder-coated aluminium housing with a special anti-oxidation coating, impact-resistant lens, and the highest possible tightness rating (IP69K), ensuring resistance against water, dust, UV, and harsh weather. Compact and aerodynamic, it integrates seamlessly into the look of modern vehicles, whether cars, vans, ATVs, SUVs, or trucks. Installation is simple with included end legs and width-adjustable lower mounts, plus a pre-fitted DT-2 connector for easy wiring.

Key features

• Two selectable power modes (Purelux PowerBoost® and road-legal)
• Measured output: 3930 lm, range 352 m (@ 1 lux)
• Combination beam: long-range with wide side illumination
• Neutral 5000K colour temperature

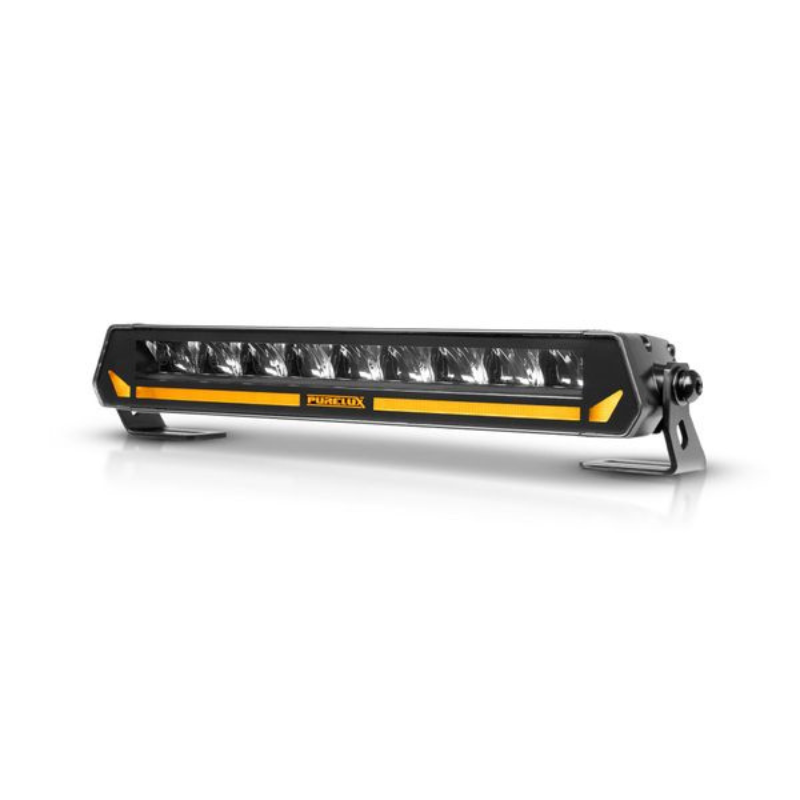

• Stylish two-colour parking light (amber/white)
• Compact, aerodynamic design with frameless Lexa polycarbonate lens
• Powder-coated aluminium housing, impact-resistant lens
• Highest possible IP rating: IP68/IP69K
• ECE R10, R7, R112 approvals (road approval not valid for PowerBoost® mode)
• Easy mounting with end legs or width-adjustable lower brackets
• Integrated DT-2 connector with separate parking light wires
• 24-month warranty

Delivery content

• Purelux Panther Aero S300 Gen2
• 2 × Width-adjustable lower legs
• 2 × End legs
• Power cable counterpart
• Connection and installation instructions (FI/SE/NO/DK/EN)

Technical specifications

• Brand and model: Purelux Panther Aero S300 Gen2
• Purpose: Auxiliary light for cars, off-road vehicles, and work machines
• LED: 9 × 6W
• Operating voltage: 9–36 V (DC)
• Reference number: 17.5
• Declared power: 54 W
• Measured power consumption:
  • PowerBoost®: 4.5 A @ 12V / 2 A @ 24V
  • Road mode: 1.91 A @ 12V / 0.91 A @ 24V
• Light output:
  • Manufacturer: 3800 lm (PowerBoost®)
  • Measured: 3930 lm (PowerBoost®) / 1979 lm (Road mode)
• Range:
  • Manufacturer: 366 m @ 1 lux (PowerBoost®) / 272 m @ 1 lux (Road mode)
  • Measured: 352 m @ 1 lux (PowerBoost®) / 264 m @ 1 lux (Road mode)
• Colour temperature: 5000 K

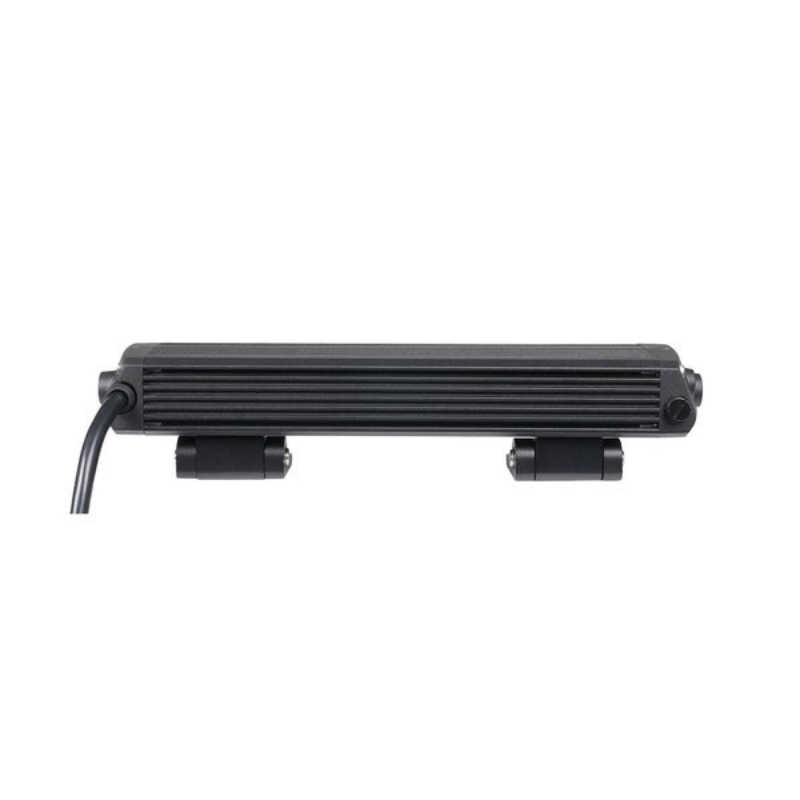

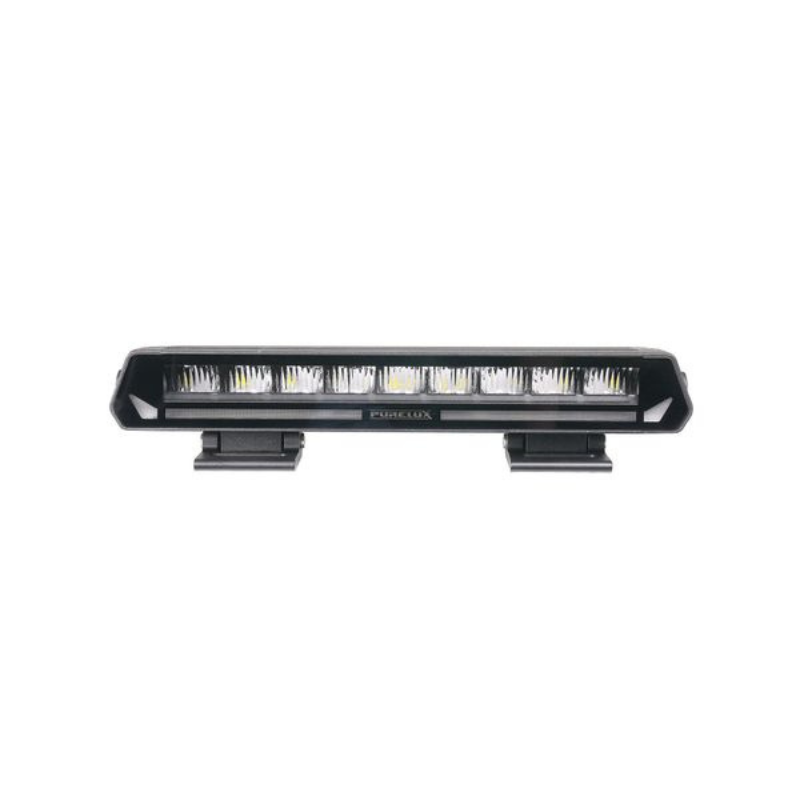

• Mounting: End legs or width-adjustable lower legs
• Connector: Deutsch DT-2, separate parking light wires
• Cable length: 50 cm
• Dimensions (W × H × D): 296 × 42 × 62.5 mm
• Height with end legs: 57 mm
• Height with lower legs: 62 mm
• Weight: 900 g
• IP rating: IP68 / IP69K
• Approvals: CE, ECE R10, R7, R112*
  (*Road approval not valid in PowerBoost® mode)
• Warranty: 24 months
