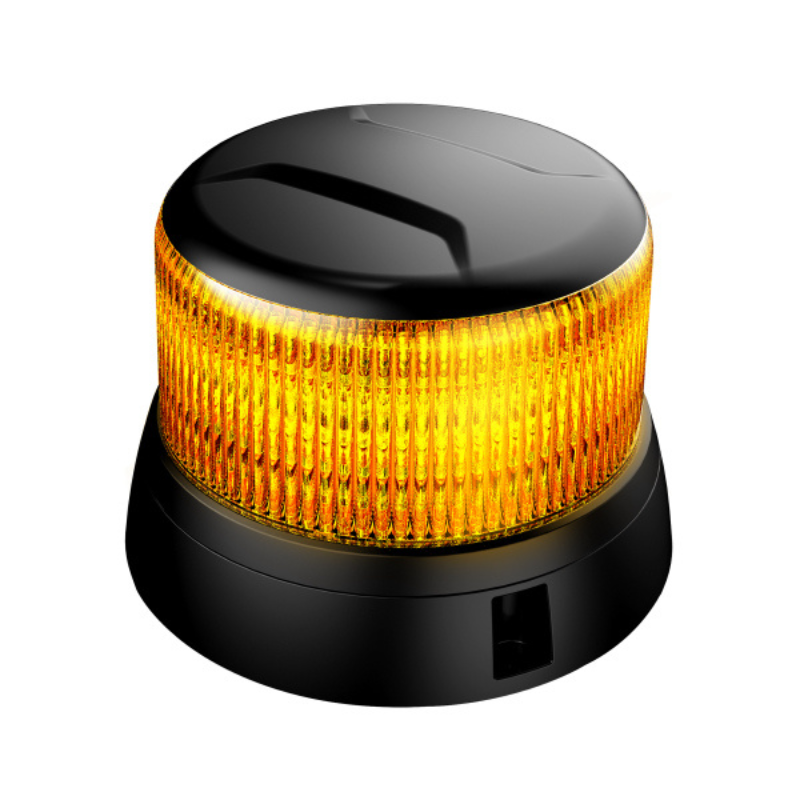

Purelux Flash M Warning light - Beacon / 12/24V / 21W / 120 mm
Couldn't load pickup availability
The Purelux Flash M is a powerful, low-profile warning light with magnetic mounting, designed for demanding professional use. It is an excellent option for service and maintenance vehicles where the warning light is not required all the time and can be switched off or removed when not in use. Compact and easy to store in the vehicle, it can be quickly attached to the roof when needed. Its main purpose is to alert and improve safety around worksites, ensuring visibility for both workers and passers-by.
Equipped with 11 operating modes, the Flash M produces a strong, highly visible amber light with a 360° spread. The aluminium housing is resistant to vibration and corrosion, while the lamp is fully dust- and waterproof to IP67 standards. Its wide operating voltage (10–30V) allows it to be used on cars, vans, trucks, tractors, and other heavy equipment.
The Flash M is E-marked and approved for road use. Its ECE R65 Class 1 approval means it is safe for night-time use, providing strong illumination without dazzling nearby drivers or workers. With a modern and compact design, it suits any type of vehicle, whether new or older. The magnetic mount is intended for situations where permanent installation is not desirable or possible.
Key Features
- Magnetic mounting for quick installation and removal
- 11 different operating modes
- 360° illumination
- ECE R65 Class 1 approved (night use)
- Dust- and waterproof (IP67)
- Durable aluminium housing, vibration and corrosion resistant
- Suitable for 12V and 24V systems (10–30V)
- Amber light output
- 24-month warranty
Delivery Contents
- Purelux Flash M
- Magnetic foot
- Power cable with cigarette lighter adapter, 2500 mm
Specifications
- Brand and model: Purelux Flash M
- Purpose: Warning and safety light for vehicles
- Operating voltage: 10–30 V
- Power consumption: max. 21.15 W
- Light colour: Amber
- Operating modes: 11
- Approvals: ECE R65 Class 1, ECE R10, CISPR 25 Class 3, SAE J845 Class 1
- Protection class: IP67
- Dimensions: 120 × 90 mm (W × H)
- Warranty: 24 months
Power Modes
- Single flash (night mode)
- Single flash
- Double flash
- Triple flash
- Quad flash
- Fivefold flash
- Rotating flash
- Combo single/triple flash
- Combo single/multiple flash
- Strobe (600 FPM)
- Steady light (cruise)

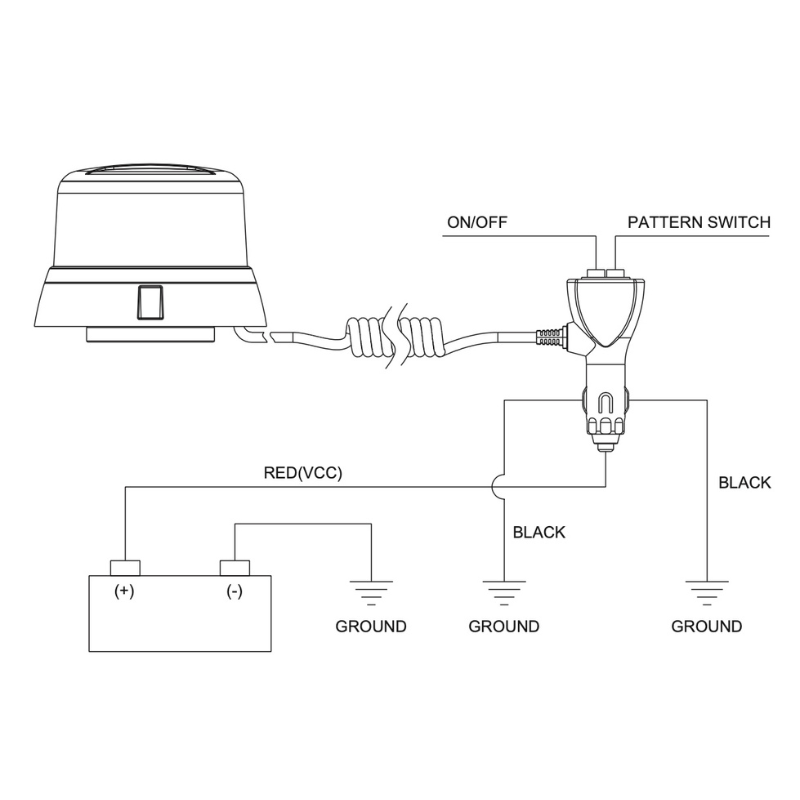

Quick Wiring Guide
See product images for a connection manual.
- Plug the warning light into the vehicle’s cigarette lighter socket.
- Use the ON/OFF switch on the plug to power the light.
- Change between the 11 flash patterns using the Pattern Switch on the plug.
-
Power connection:
- Red wire (VCC): Connects to battery positive (+).
- Black wire: Connects to ground (-).
- Ensure all black wires shown in the diagram are connected to the vehicle chassis or other suitable ground points.
