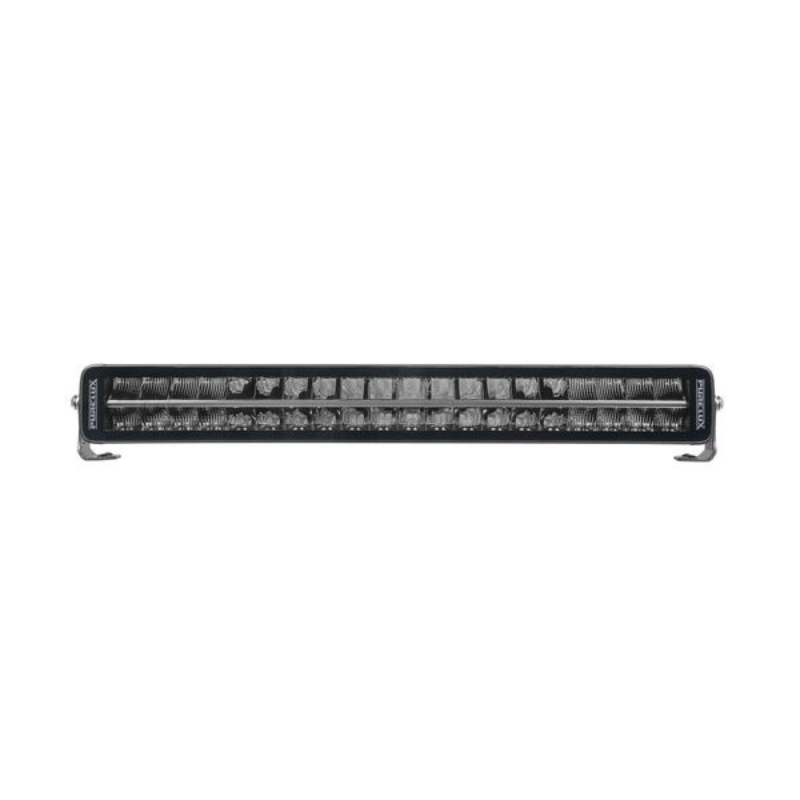

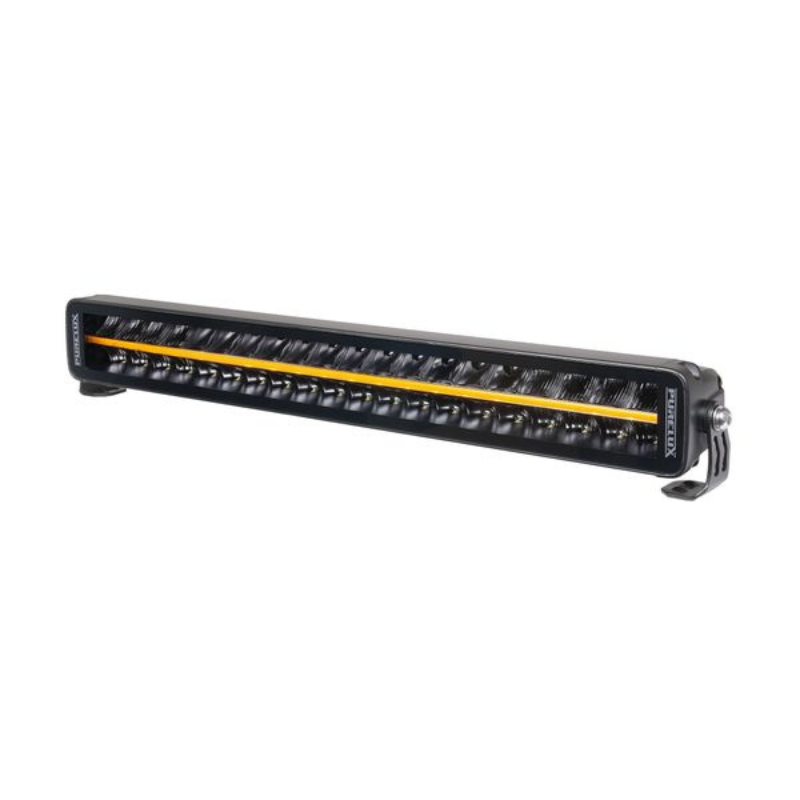

The Purelux Black Boost S560 Gen3 is a high-performance auxiliary light from the Black series, offering top-quality features at an affordable price. It boasts two power modes: a road-legal mode with 5954 lumens and the powerful off-road PowerBoost® mode with up to 12648 lumens and a range of 654 meters. Its updated design includes a dynamic dual-colour parking light (orange/white) and an easier switching system for power modes. The S560 Gen3’s beam is optimized for road traffic, combining a bright central spot for long-range visibility with lateral illumination, while its curved model provides a wider horizontal beam. The 5700 Kelvin colour temperature and frameless lens design prevent snow, ice, and dirt build up. Constructed with a powder-coated aluminium alloy frame and polycarbonate lens, it is IP69K-rated for water and dust protection. Installation is simple with the DTP-2 connector, adjustable mounting options, and compatibility with 12V and 24V systems. Stylish, durable, and user-friendly, the S560 Gen3 is ideal for a variety of vehicle installations.
Key Features:
- Application: Additional lighting for cars, off-road vehicles, and work machines
- LED Type: Osram
- Operating Voltage: 9-32 V
- Reference Number: 50
-
Power:
- Purelux PowerBoost®: 200 W (14.65A @ 12V / 7.33A @ 24V)
- Road Mode: 83.9 W (6.99A @ 12V / 3.49A @ 24V)
-
Light Output:
- Manufacturer Declared: 16800 lm (Purelux PowerBoost®)
- Measured: 12648 lm (Purelux PowerBoost®), 5954 lm (Road mode)
-
Range:
- Purelux PowerBoost®: 654 m @ 1 lux / 1090 m @ 0.25 lux
- Road Mode: 410 m @ 1 lux / 820 m @ 0.25 lux
-
Colour Temperature:
- Declared: 5700 K
- Measured: 5840 K

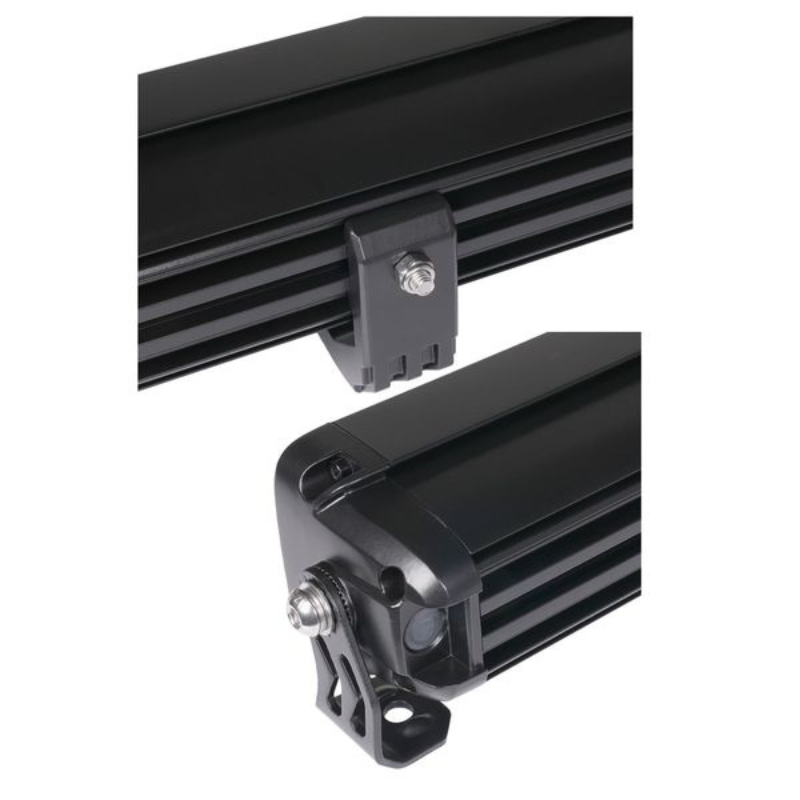

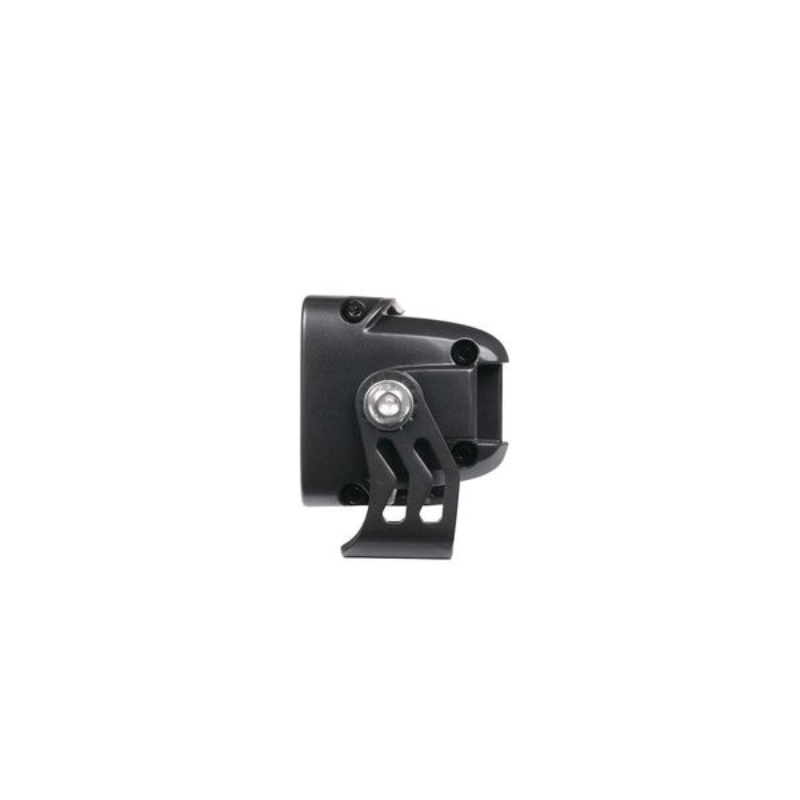

- Mounting: End legs or adjustable lower legs
- Connector: DTP-2
- Parking Lights: Separate wires
- Cable Length: 50 cm
- Dimensions: 561 x 70 x 67 mm (Width x Height x Depth)
- Height: 86 mm (end legs) / 89 mm (lower legs)
- Weight: 2300 g
- IP Rating: IP69K
- Approvals: ECE R10, R148, R149* (*PowerBoost® mode not road traffic approved)
Standard Package:
- Purelux Black Boost S560 Gen3
- 2 x Levees with adjustable footrests
- 2 x Headrests
- Power cable connector
- Connection and installation instructions (EN/SE/NO/DK/FI)
