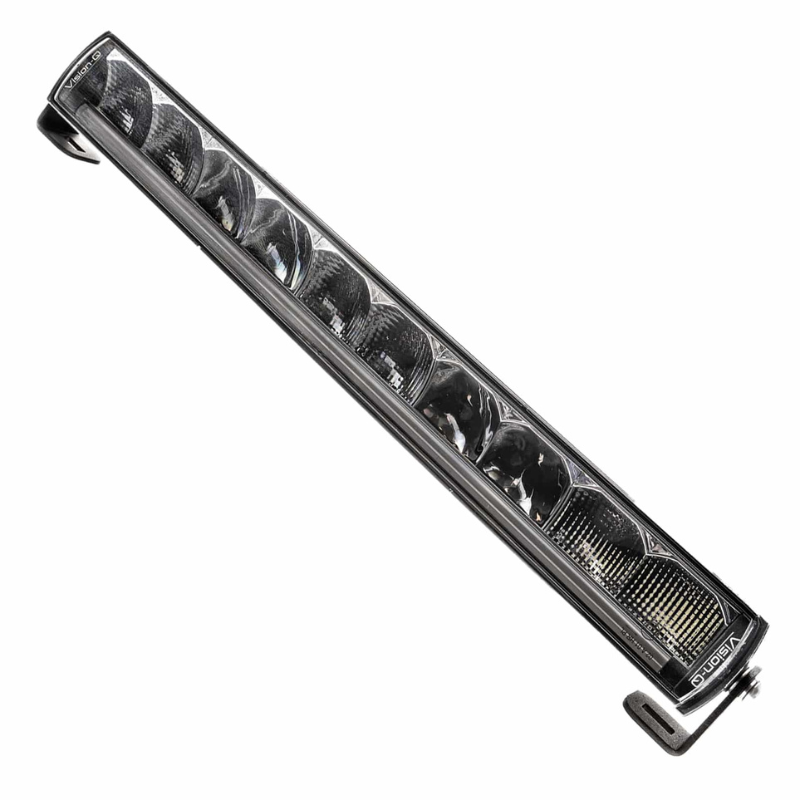

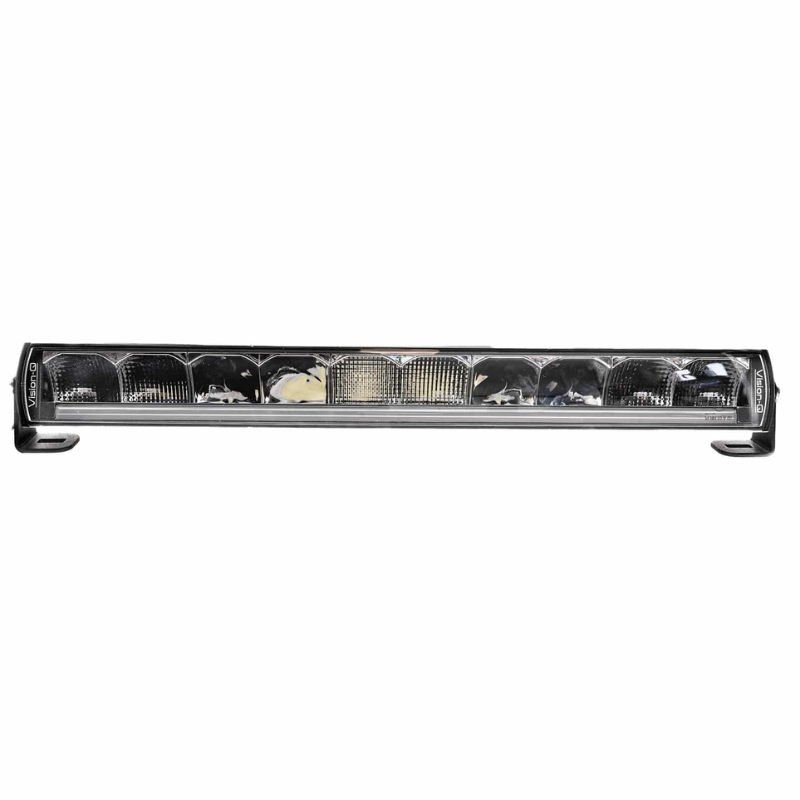

VISION-Q LED Lightbarr 100W 9500 Lumen CREE - BL1010S-AW

The Vision-Q LED Bar is an outstanding choice for high-beam applications, providing intense, focused illumination ideal for enhancing visibility in various settings. With a robust construction and advanced features, this LED bar combines durability with versatility, perfect for use on vehicles needing additional lighting power, such as off-road vehicles, motorhomes, and agricultural machinery. The bar’s adjustable design and IP68 rating make it resilient in all weather conditions, delivering reliable performance for the long haul.

General Features

• Functions: High beam and position light for superior visibility
• Housing: Powder-coated aluminium for added durability
• Lens Finish: PMMA for optimal clarity and impact resistance

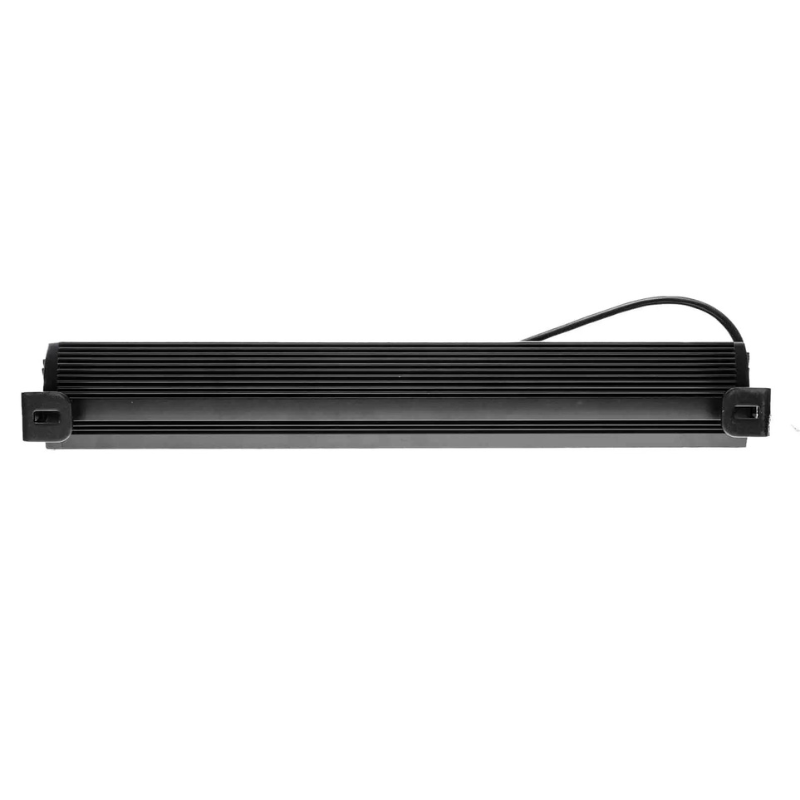

• Mounting Options: Adjustable bracket allows for side or bottom mounting, offering flexible installation

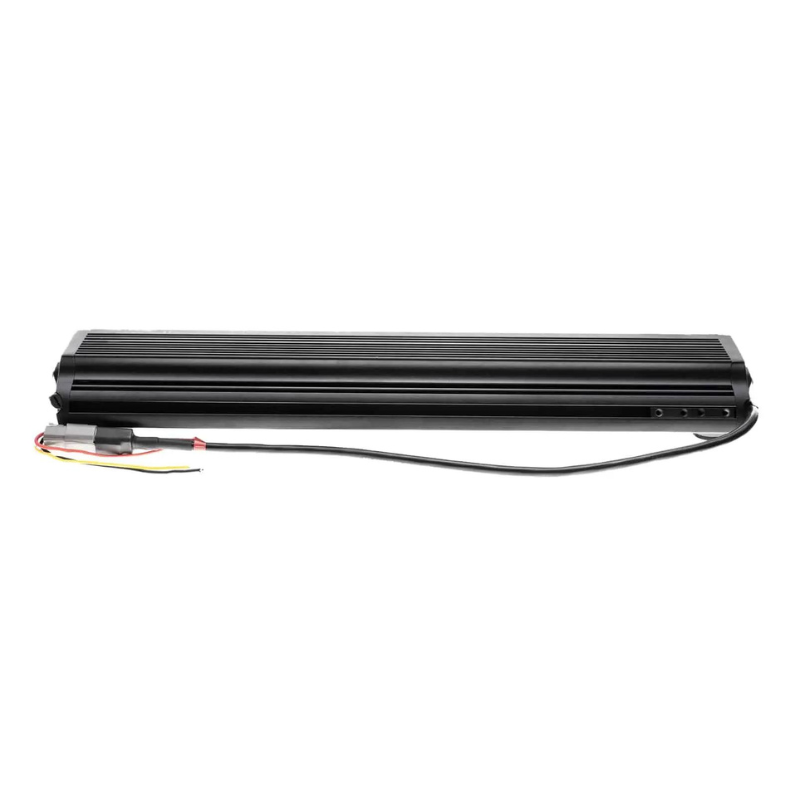

• Connector: Deutsch DT 4-pin connector with an extra cable for easy setup
• LEDs: 10 x 10W high-power Cree LEDs for bright, efficient lighting
• Adjustable Angles: Fully adjustable, accommodating a range of positions
• Lifespan: Over 50,000 hours for extended use
• IP Rating: IP68, dustproof and waterproof, suitable for harsh environments
• EMC Certification: CISPR Class 3 for radio interference reduction
• Certifications: R112, R7, R10 for road compliance and performance

Technical Specifications

• Light Intensity: 9500 lumens for powerful, cool white light
• Light Colour: Cool white
• Colour Temperature: 6000K, providing crisp, daylight-like illumination

Electrical Specifications

• Power Output: 100W
• Voltage Range: 9-30V, compatible with a range of vehicle systems

Dimensions (in mm)

• Lamp Width: 516 mm
• Lamp Height without Bracket: 58 mm
• Lamp Height with Bracket: 69 mm
• Lamp Depth: 81 mm

With high-quality materials and reliable performance, the Vision-Q LED Bar stands out as a top-tier lighting option, meeting demanding requirements across different environments. Its powerful 9500-lumen output, long lifespan, and versatile mounting make it an exceptional addition for enhancing visibility, whether on the road, in the field, or on rugged terrains.
