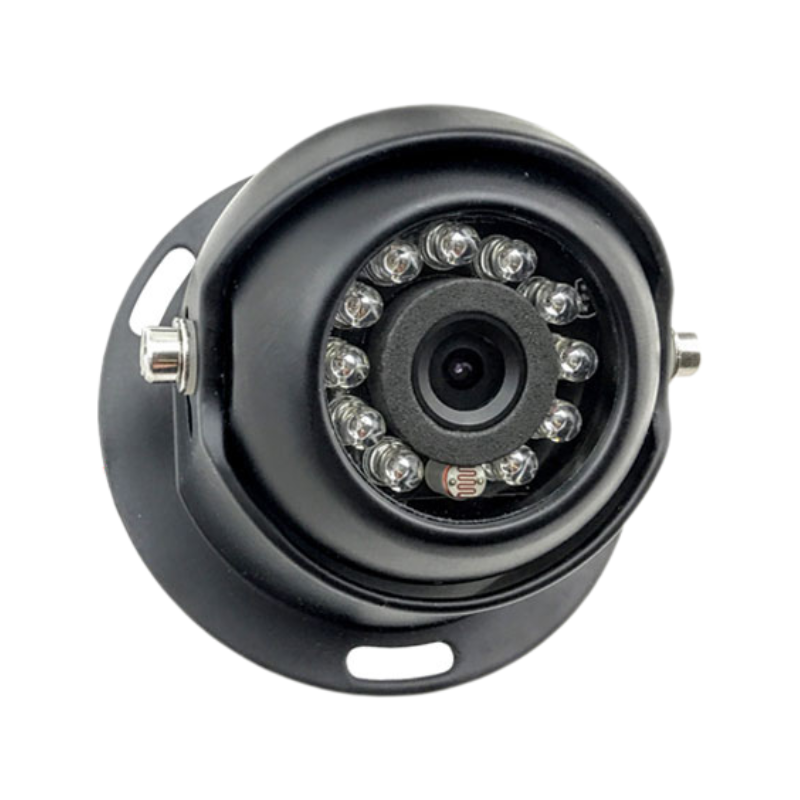

Black Dome Reversing Camera | Sony CCD | 4 pin connector

This listing is for the black dome-bodied reversing camera, a popular choice for those who prefer a sleek, rounded design over the typical square-shaped bracket cameras. The camera offers adjustable viewing angles, allowing it to tilt downward for reversing or angle straight back to monitor following traffic. Equipped with IR Infra Red LEDs for night vision, this camera ensures clear visibility even in complete darkness.

Key Features

• Sleek Dome Design: Preferred by users who want a non-intrusive, rounded camera body.
• Adjustable Viewing Angle: Can be tilted downwards or angled straight back.
• Night Vision: Fitted with IR Infra Red LEDs that provide invisible light for the camera to see at night.
• High-Quality Image Sensor: 1/3" SONY CCD 811 960H sensor for excellent picture quality.
• Waterproof Up to IP68: Designed to withstand various weather conditions.
• 4-Pin Aviation Connector: Compatible with any of our 4-pin monitors.
• Foam Gasket and Grommet: Ensures waterproof cable entry and secure mounting.
• Mirror Image Output: Replicates the view seen in standard vehicle mirrors.
• Colour and Black & White Imaging: Provides colour images during the day and black & white images at night.
• Power Supply: Works on a 12V power supply from the monitor; compatible with 12/24V monitors.

Technical Specifications

• Image Device: 1/3" SONY CCD 811 960H
• TV System: PAL
• Effective Pixels: 976*582
• Scanning System: 2:1 Interlace
• Sync. System: Internal
• Resolution: 700 TV lines
• Minimum Illumination: 0 Lux (IR LEDs on)
• Video Output: 1.0vp-p, 75 Ohm
• Gamma Consumption: 0.45
• AGC: Auto
• S/N Ratio: Better than 48dB
• White Balance: Auto
• Electronic Shutter: 1/50 Sec-12.5μSec (PAL)
• BLC: Auto
• Current Consumption: 100mA
• Waterproof Rating: IP68
• Infrared LEDs: For night vision
• Viewing Angle: Approximately 120 degrees (diagonal)
• Mirror Image: Yes

Additional Information

This camera comes with a 55cm fly lead terminating in a 4-pin aviation plug, making it easy to connect to any compatible monitor. The included foam gasket and grommet ensure a secure and waterproof installation. Designed to provide excellent image quality both day and night, this camera is an ideal choice for anyone looking to enhance their vehicle's reversing capabilities with a stylish and reliable camera.
