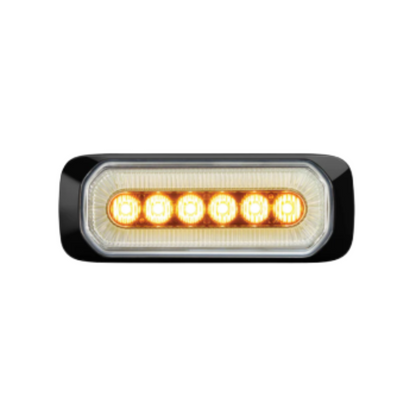

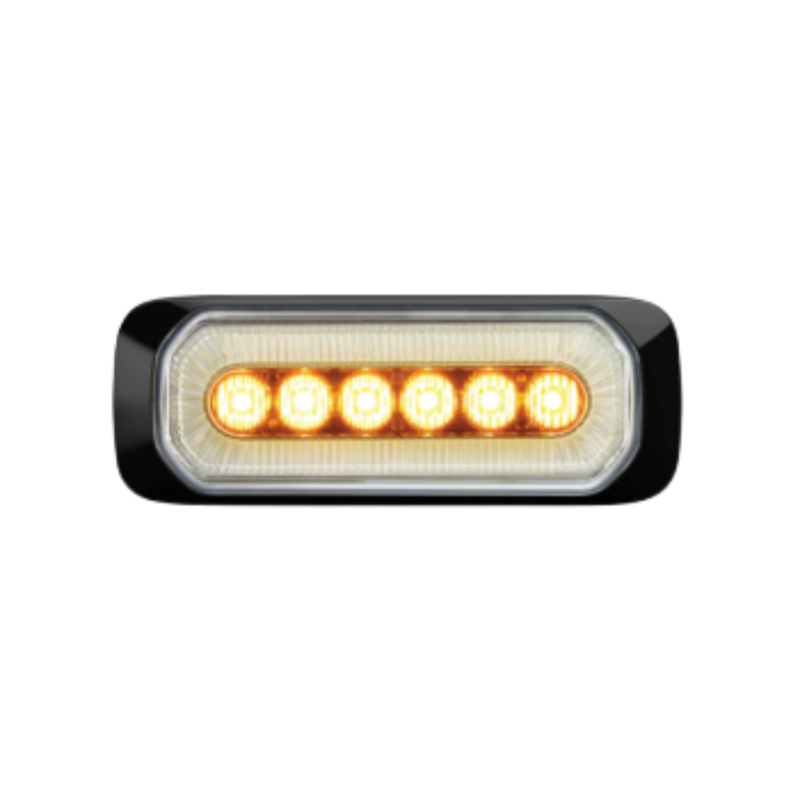

Amber - WhiteHalo Strobe Light with Halo Ring- Halo Blitz Series HB6 - LEDDHB6-AW

Regular price £68.00
Regular price Sale price £68.00
Shipping calculated at checkout.
Brand: LightComm
Availability: Low stock: 10 left
Brand Code: LEDDHB6-AW
Regular price £68.00
Regular price Sale price £68.00

The HB6 presents a groundbreaking approach in road safety technology, featuring 6 high-intensity LEDs encompassed by a distinct halo-ring. The core LEDs serve as a warning signal, while the surrounding halo-ring offers versatility in use, acting as a side marker among various other functions.

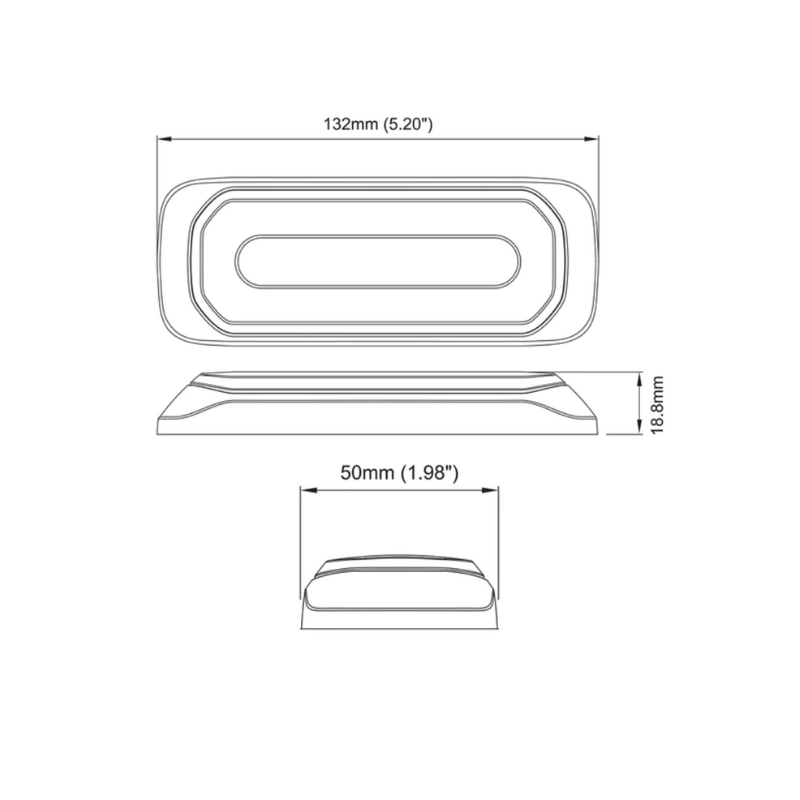

Dimensions: 132mm (L) x 18.8mm (H)  x 50mm (D)

Key Features:

  • 6LED high-performance warning lamp with special outer Halo-Ring.
  • Independent controlled, multi-purposed outer Halo- Ring as a Clearance Lamp, an Identification Lamp, a Position Lamp, or a Side Marker Lamp.
  • SAE and ECE R65 certified high power warning output.
  • ECE R10 EMC Compliance.
  • Long life LEDs rated to 100,000 hours of operation.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Fully Weatherproof and vibration resistant design for external and internal use.
  • Aluminum base for efficient heat dissipation and maximum durability.

Specifications:

  • Meets: SAE J595 Class1 (A/B/R/W); SAE J592 (A/R); SAE J2042 (A/R); CA Title13 (A/B/R); ECE R7 (R/W); ECE R10; ECE R65 (XA1, XB1); ECE R91 (A); IPx8
  • Warning LED: High-power LED x 6 pcs
  • Halo-Ring LED: Long-life LED x 18 pcs
  • Warning Patterns: 14 Flash Patterns
  • Operating Voltage: 12~24VDC
  • Avg. Current: 0.675A @12VDC / 0.375A @24VDC (varies by flash pattern)
  • Avg. Power: 9 Watts (varies by flash pattern)
  • Max. Current: 1.35A @12VDC / 0.75A @24VDC
  • Max. Power: 18 Watts

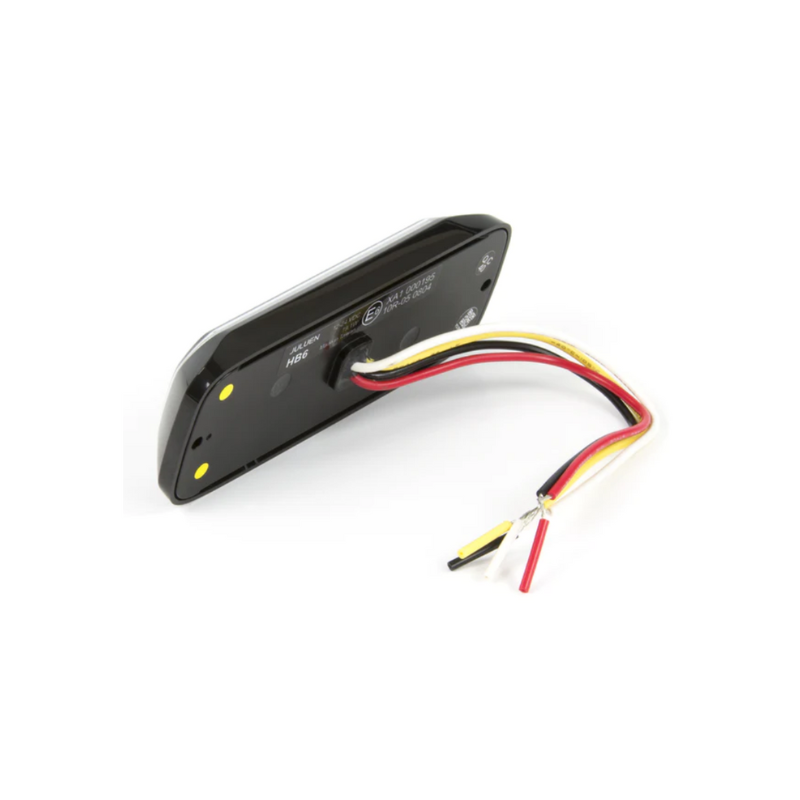

  • Wires: Red-Vcc : 25cm (20AWG) / Black-GND : 25cm (20AWG) / White-Vcc: 25cm (20AWG) / Yellow-Sync & Functions : 25cm (20AWG)
  • Fuse Recommended: 2A
  • Multi-Unit Synchronization: Over 15 units
  • Available Warning Colour: Red, Blue, Amber, White
  • Available Halo-Ring Colour: Red, Blue, Amber, White
